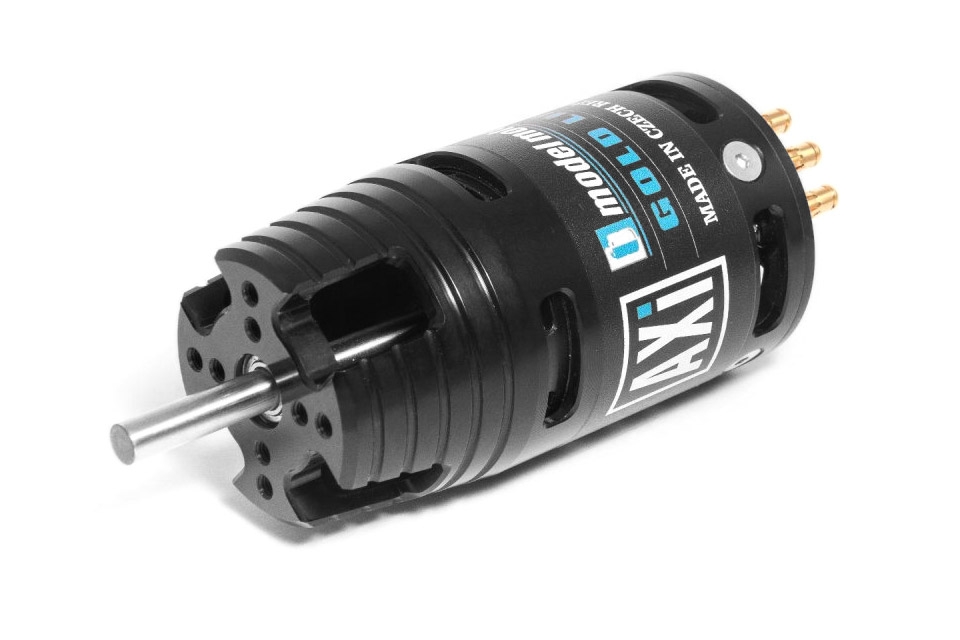

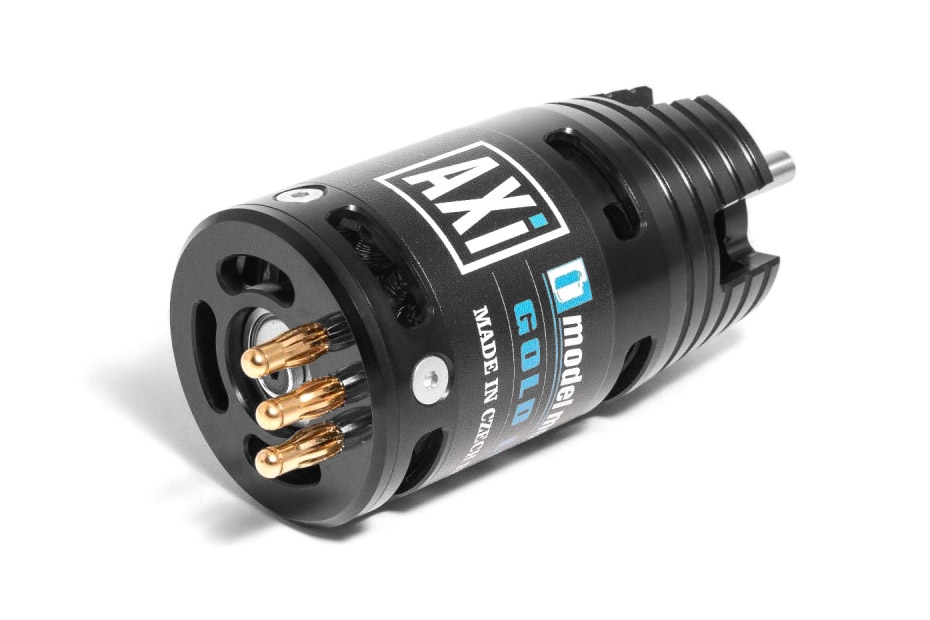

AXI 2820/12 Cyclone KV990

On Stock

142,00 €

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 990 ; Nr. of turns: 12 ; Internal resistance [mOhm]: 59 ; No load current [A]: 1.6 ; max. effenciency [%]: 85 ; Max. efficiency current (η>76%) [A]: 15 - 25 ; Max. peak current (60 s) [A]: 40 ; Max. power [W]: 660 ; Diameter [mm]: 40 ; Lenght [mm]: 69 ; Shaft diameter [mm]: 5 ; Weight [g]: 197 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 40 - 60 ; Sailplane up to Weight [g]: 2400

Powering LiXX cells	2 - 3
RPM/V [ot./min/V]	990
Turn count	12
Internal resistance [mOhm]	59
Open-circuit current [A]	1.6
Max. efficiency [%]	85
Max. efficiency current (η>76%) [A]	15 - 25
Max. peak current (60 s) [A]	40
Max. power [W]	660
Diameter [mm]	40
Length [mm]	69
Shaft diameter [mm]	5
Weight [g]	197
Poles count	14
Timing [°]	15 - 25
ESC [A]	40 - 60
Weight of glider (up-to) [g]	2400
