Code: 3EL105722
Brand: AXI

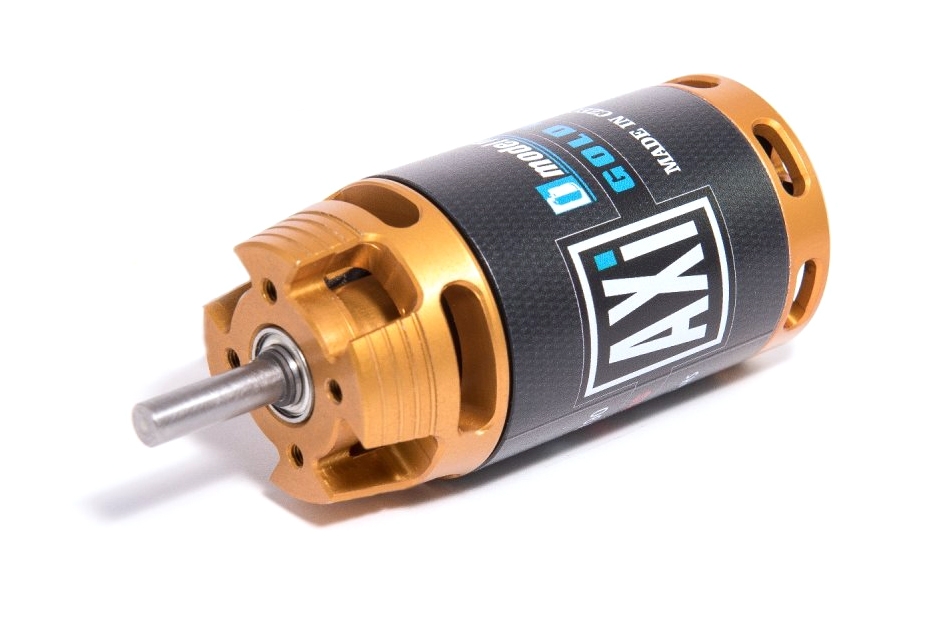

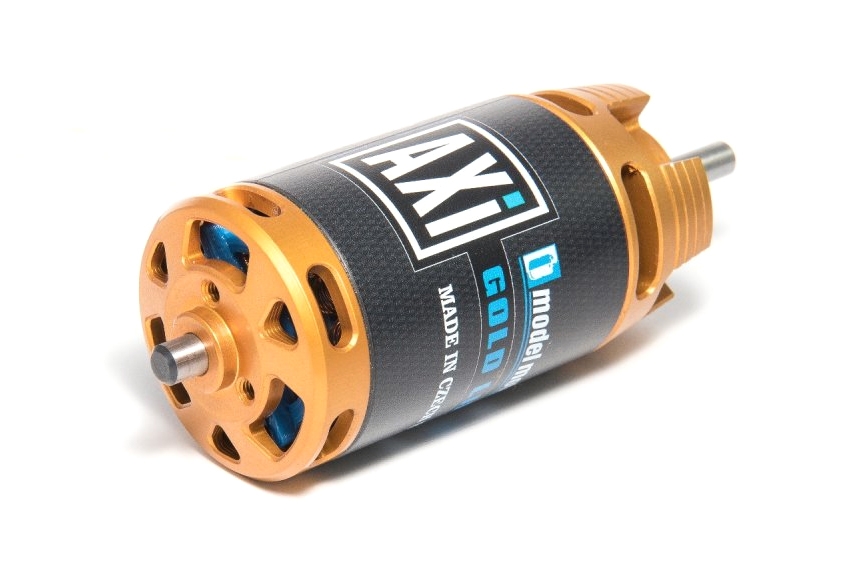

AXI 2830/12 V2 LONG Brushless
On Stock
130,00 €Supply voltage LiXX cells: 3 - 6 ; RPM/V [RPM/min/V]: 670 ; Nr. of turns: 12 ; Internal resistance [mOhm]: 64 ; No load current [A]: 2.5 ; max. effenciency [%]: 85 ; Max. efficiency current (η>78%) [A]: 20 - 30 ; Max. peak current (60 s) [A]: 48 ; Max. power [W]: 750 ; Diameter [mm]: 35 ; Lenght [mm]: 70.5 ; Shaft diameter [mm]: 5 ; Weight [g]: 232 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 50 - 70 ; Sailplane up to Weight [g]: 3500 ; Acrobat up to Weight [g]: 3000 ; 3d up to Weight [g]: 2000
| Powering LiXX cells | 3 - 6 |
| RPM/V [ot./min/V] | 670 |
| Turn count | 12 |
| Internal resistance [mOhm] | 64 |
| Open-circuit current [A] | 2.5 |
| Max. efficiency [%] | 85 |
| Max. efficiency current (η>78%) [A] | 20 - 30 |
| Max. peak current (60 s) [A] | 48 |
| Max. power [W] | 750 |

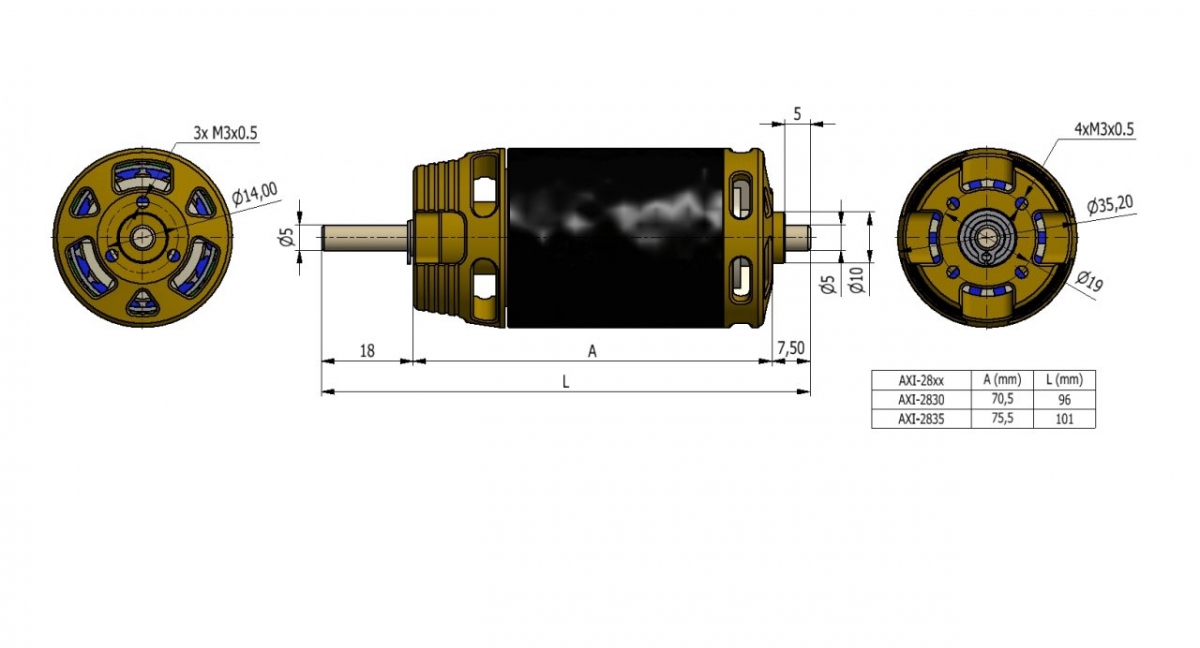

| Diameter [mm] | 35 |
| Length [mm] | 70.5 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 232 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 50 - 70 |
| Weight of glider (up-to) [g] | 3500 |
| Weight of acrobat (up-to) [g] | 3000 |
| Weight of 3D (up-to) [g] | 2000 |
