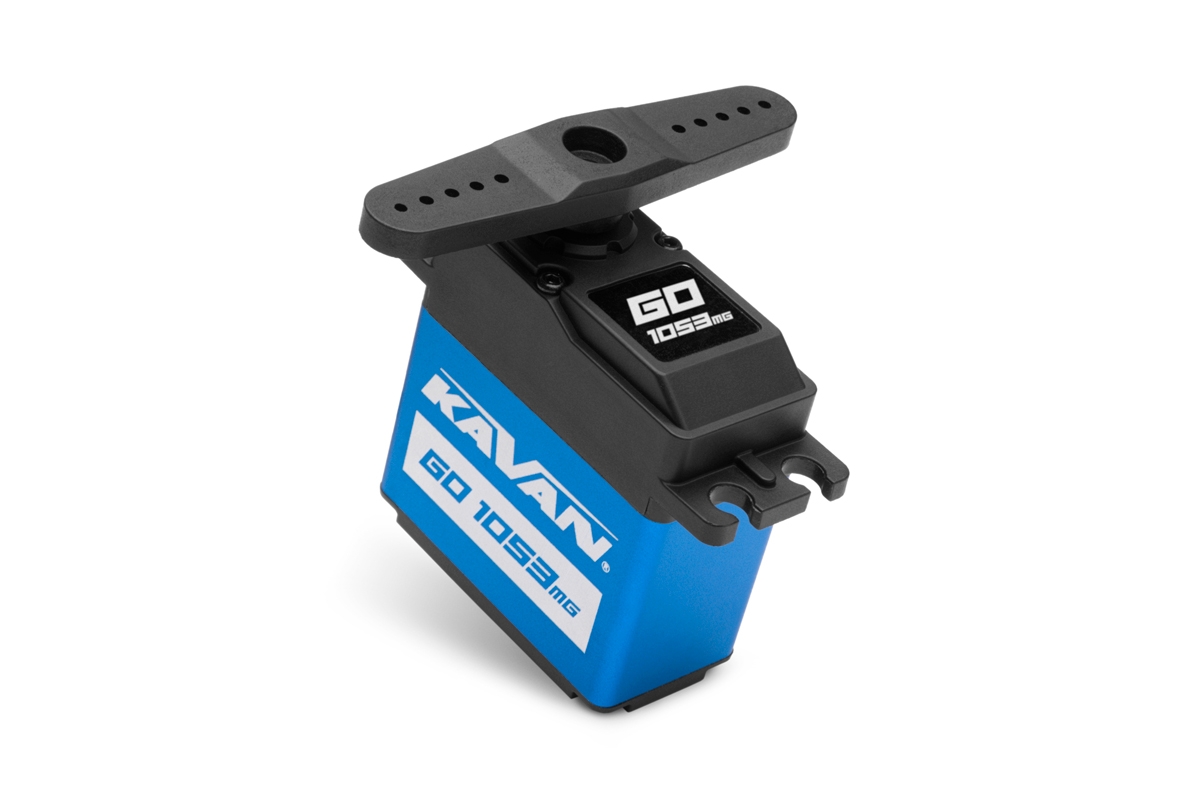

GO-1053MG (0.17s/60°, 20.0kg.cm)

High torque programmable digital standard servo 63g with titanium gear and wide input voltage range 4.8-8.4V, 2xBB, ideal for large model aircraft, 1:10 RC cars, etc. Torque 13.0kg.cm, speed 0.23s/60° at 4.8V, torque 15.0kg.cm, speed 0.21s/60° at 6.0V, torque 18.0kg.cm, speed 0.20s/60° at 7.4V, torque 20.0kg.cm, speed 0.17s/60° at 8.4V. Aluminium middle case heatsink for perfect cooling under high load.

On Stock

31,99 €

Rotate with mouse

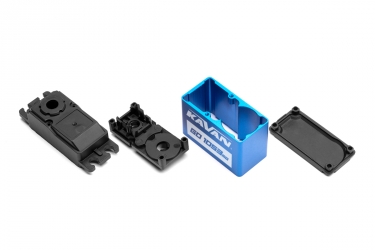

Programmable digital standard servo with titanium gear aand double BB-ed output shaft for general use in all kind of RC models - great for larger model planes, 1:10 RC cars etc. Plastic case with middle aluminium heatsink for perfect cooling under high load.

GO-1053MG is programmable using the KAVAN GO servo USB programmer/interface and PC software.

Programmable Functions

Servo Angle: Maximal servo rotation angle range setting. The default range is ca 120° within the regular RC signal pulse width range (900~2100 µs); ca 180° within the max. signal pulse width range (500~2500 µs).
Servo Neutral: Servo neutral (centre) position setting.
Damping Factor: Servo damping setting – adjust the characteristics of the servo when stopping.
PWM Power: Adjusts the servo output power. The higher the power, the higher the speed and torque of the servo – indeed also the current consumption will be higher.
Sensitivity: Servo sensitivity (Dead Band) setting. The higher sensitivity the narrower the dead band – servo moves only if the change of the signal pulse width is bigger than the dead band width. Too high setting may cause servo jitter in some applications. Range: Ultra High (ca 1 µs dead band) – High (ca 2 µs) – Medium (ca 3 µs) – Low (ca 4 µs)
Soft Start: Turns on/off the soft start feature. If ON, the servo goes slowly to the initial position corresponding to the servo signal once the power is switched on.
Reverse: Reverses the servo movement direction.
Narrow Band: FUTABA SR Mode – only for use with FUTABA radio channels working in the SR mode. Do not turn the option on if you are using a different setting of your FUTABA radio or any other radio.
SANWA SSR: SANWA SSR Mode - only for use with SANWA radio channels working in the SSR mode. Do not turn the option on if you are using a different setting of your SANWA radio or any other radio.
Lost PPM Protection (Fail-Safe): In the case the control signal from the receiver is lost completely or cannot be decoded correctly (due to interference) the servo can use choose one of three fail-safe modes:

(a) Release: No fail-safe protection.
(b) Keep Position: Keeps the position corresponding to the last correct control signal.
(c) Go Neutral Position: The servo returns to the neutral (1500 µs pulse width) position.

Over Load protection: Enables or disables overload protection of the servo in three levels – once the overload conditions last for the pre-set time (in seconds), the output power of the servo is reduced to the corresponding pre-set level (% of the max. power).
Default: Restores the factory default setting of the connected servo.

Wide input voltage range 4.8-8.4 V (nominal).

25T/5.92 mm output shaft.

Servo dimensions	Standard
Servo type	Digital
Programmable	Yes
Thrust at 4.8V [kg/cm]	13
Thrust at 6.0V [kg/cm]	15
Thrust at 7.4V [kg/cm]	18
Thrust at 8.4V [kg/cm]	20
Speed at 4.8V [s/60st.]	0.23
Speed at 6.0V [s/60st.]	0.21
Speed at 7.4V [s/60st.]	0.2
Speed at 8.4V [s/60st.]	0.17
Servo gears	Titanium
Ball bearings	2×
High-voltage	Yes
Power supply [V]	4.8 - 8.4

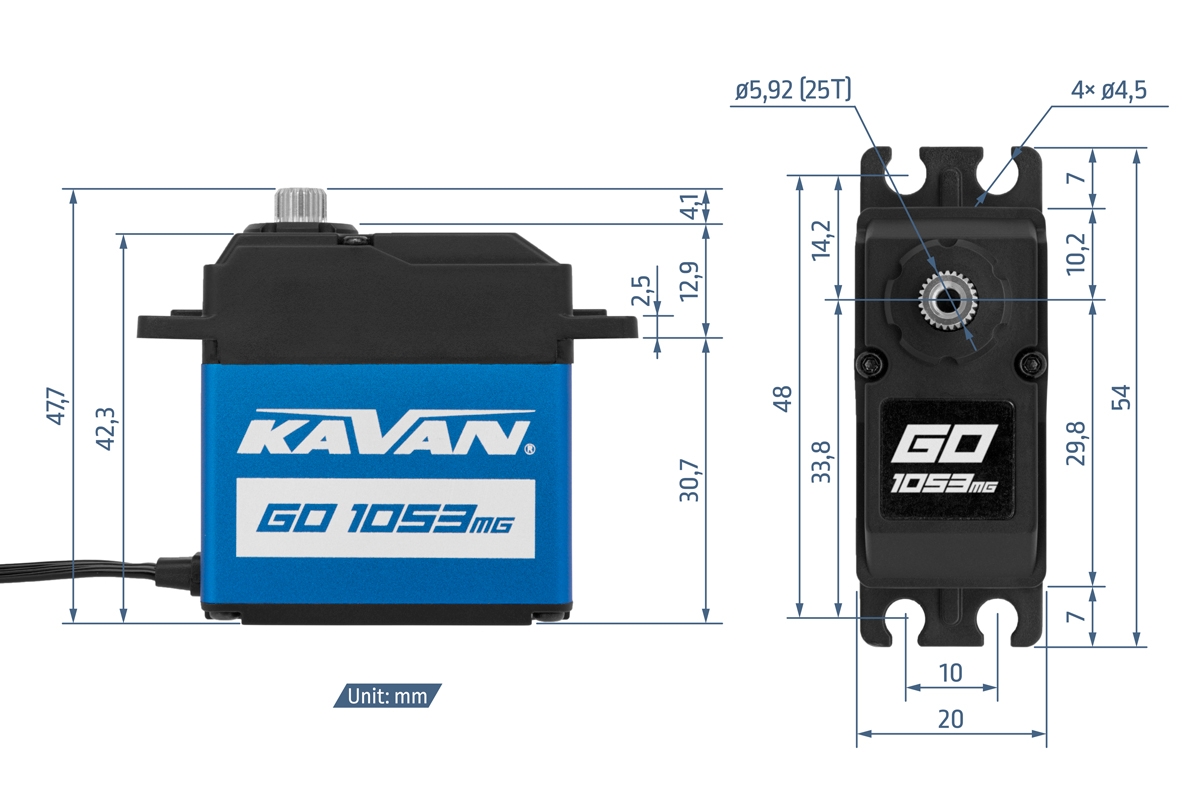

Length [mm]	40
Width [mm]	20
Height [mm]	42.3
Weight [g]	63
Intended for	Aeroplanes,On-road cars,Off-road cars,Boats
