Code: KAV20.9MG
Brand: KAVAN

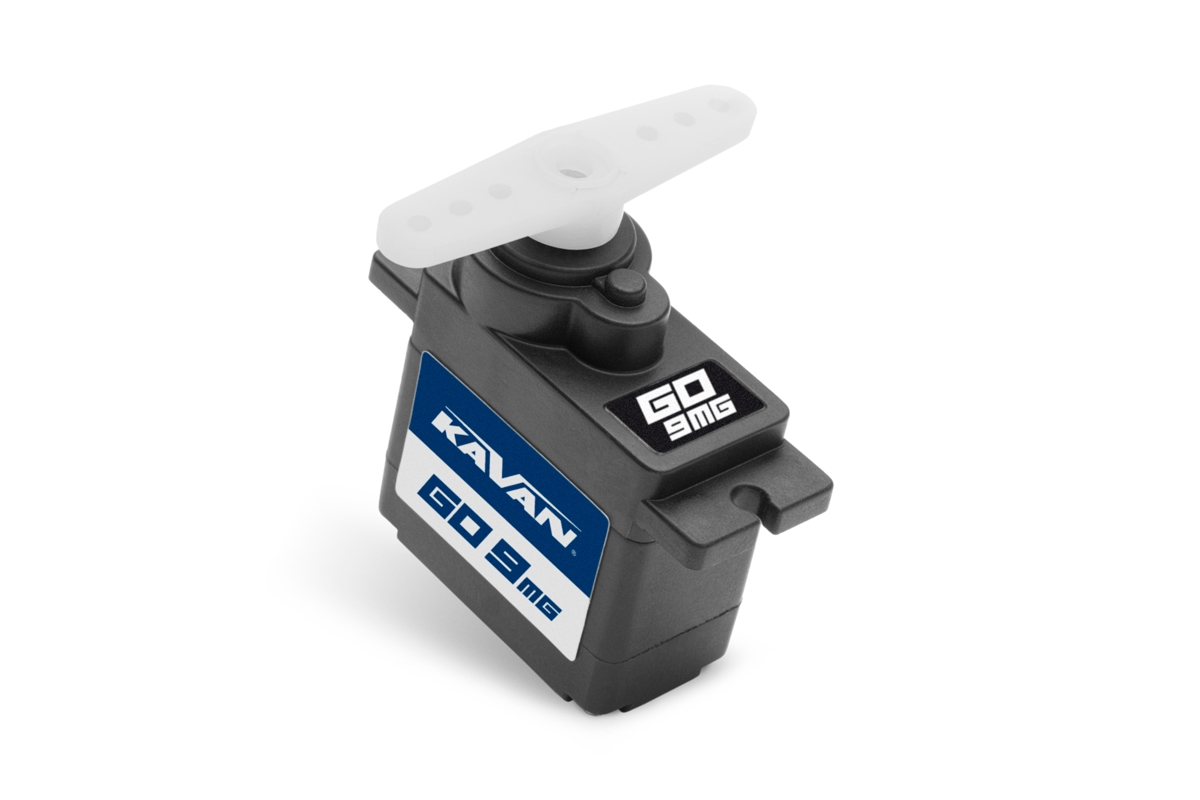

GO-9MG (0.11s/60°, 2.2kg.cm)
High torque digital pico servo 11g with steel gear and input voltage range 4.8-6.0V, 1xBB, ideal for small model aircraft, 1:18-1:24 RC cars, etc. Torque 1.8kg.cm, speed 0.13s/60° at 4.8V, torque 2.2kg.cm, speed 0.11s/60° at 6.0V. Plastic case.
On Stock
11,39 €High Torque digital pico servo with steel gear and single BB-ed output shaft for small RC model planes, 1:14-1:24 RC cars, 400-450 size helicopters etc. Plastic case.
Non-programmable.
Standard input voltage range 4.8-6.0 V (nominal).
| Servo dimensions | Micro |
| Servo type | Digital |
| Programmable | No |
| Thrust at 4.8V [kg/cm] | 1.8 |
| Thrust at 6.0V [kg/cm] | 2.2 |
| Speed at 4.8V [s/60st.] | 0.13 |
| Speed at 6.0V [s/60st.] | 0.11 |
| Servo gears | Metal |
| Ball bearings | 1× |
| High-voltage | No |
| Power supply [V] | 4.8 - 6 |

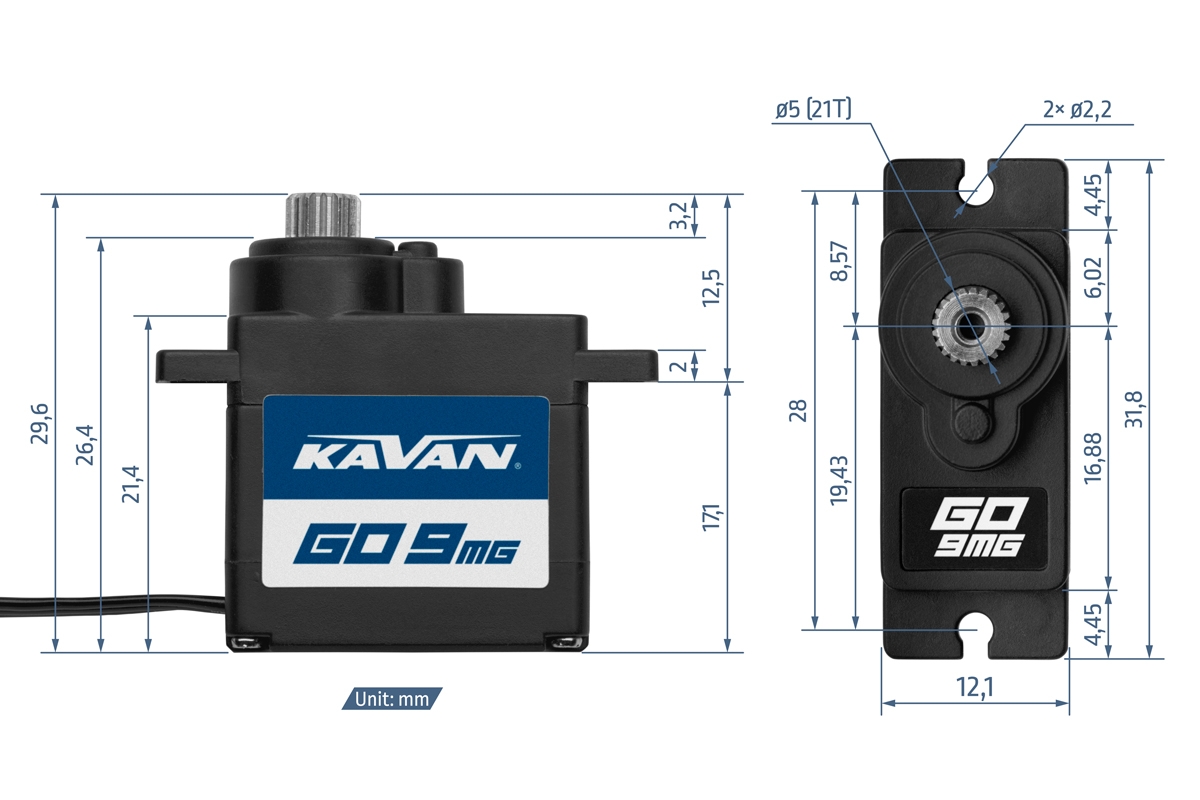

| Length [mm] | 23 |
| Width [mm] | 12.1 |
| Height [mm] | 21.4 |
| Weight [g] | 11 |
| Intended for | Aeroplanes,Helicopters,On-road cars,Off-road cars,Boats |
