Code: MKS22009
Barcode: 4710150350547
Brand: MKS

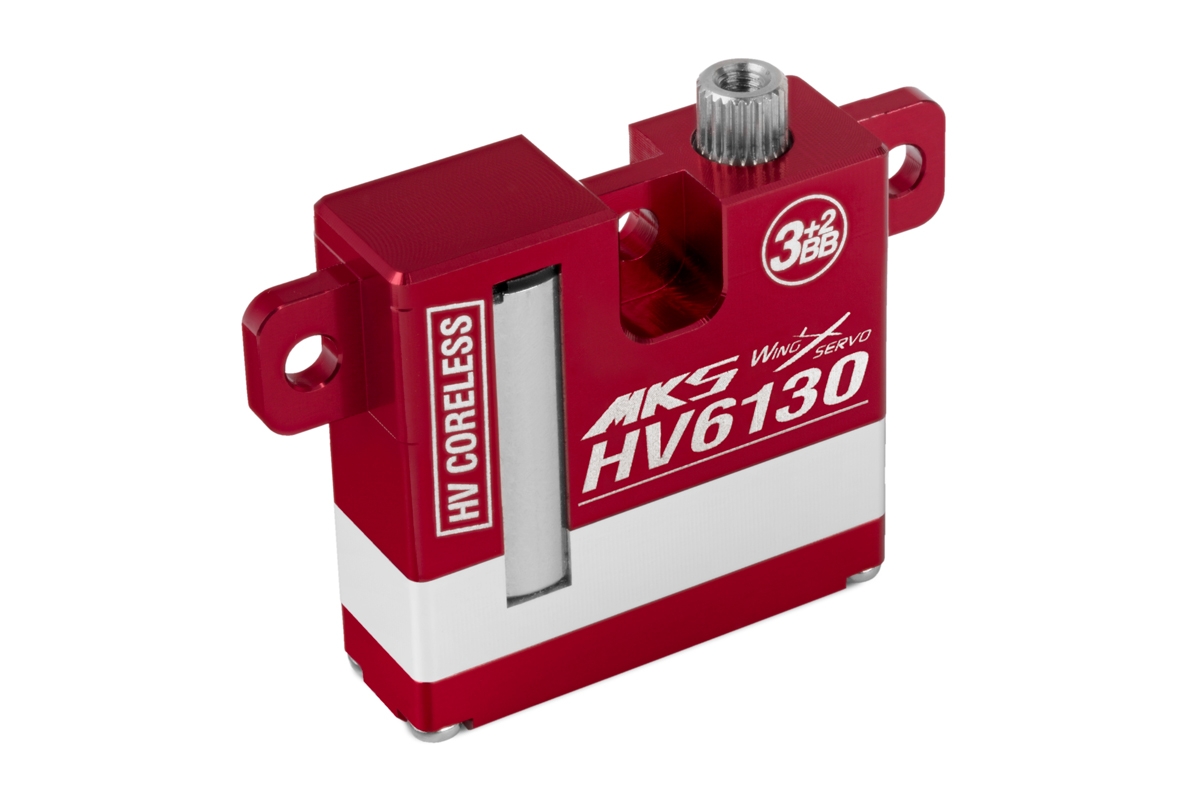

HV6130 (0.10s/60°, 8.1kg.cm)

Ultra high torque/ high speed 22.5g HV digital slim micro servo w. metal gears; input voltage 6.0-8.4V, 3xBB. Ideal for wings of gliders and aerobatic/scale model aeroplanes. Torque 6.0kg.cm, speed 0.140s/60° at 6.0V, torque7.6kg.cm, speed 0.11s/60° at 7.4V, torque 8.1kg.cm, speed 0.10s/60° at 8.2V. Dimensions 30x10x29.8mm, weight 22.5g. Aluminium case for perfect heat dissipation with flat mounting lugs. Programmable with DSP-1 programmer.
On Stock
88,99 €
Description

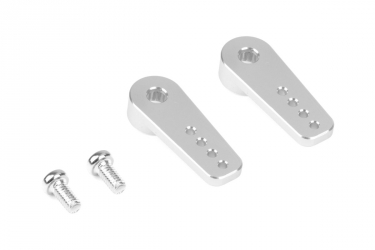

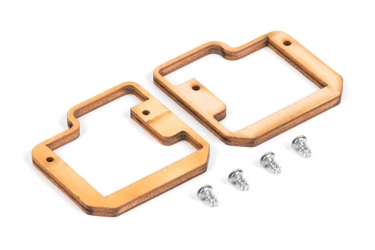

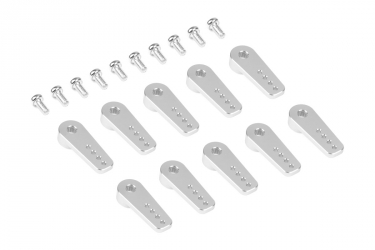

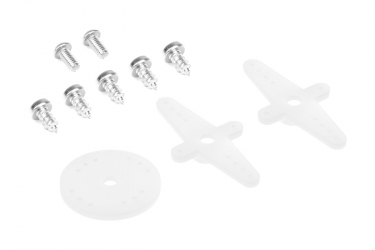

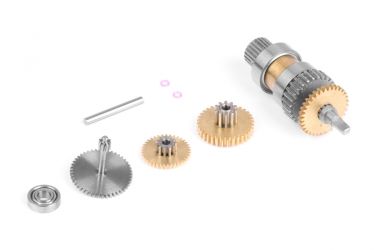

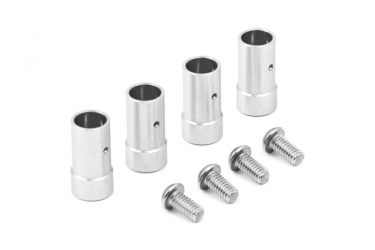

Spare parts
Download

Ultra high torque/high speed programmable digital micro servo with titanium gears with 3 ball bearings and two jewel bearings. The high precision no-backlash pre-loaded gears and slim 10 mm servo case makes it particularly suitable for controlling ailerons and flaps in gliders (F3B, F3F, F3J, F5J, etc.) and motor models with thin wing/tailplane profiles. An aluminium case with flat mounting lugs for perfect cooling even under high loads.

Input voltage range 6.0-7.4 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

Servo dimensionsMicro
Servo typeDigital
ProgrammableYes
Torque at 6.0V [kg∙cm]6
Torque at 7.4V [kg∙cm]7.6
Torque at 8.2 V [kg∙cm]8.1
Speed at 6.0V [s/60st.]0.14
Speed at 7.4V [s/60st.]0.11
Speed at 8.2 V [s/60st.]0.1
Control pulse width in neutral [µs]1520
Frame Rate [Hz]333
Deadband [ms]0.001
Servo gearsMetal
Ball bearings
High-voltageYes
Power supply [V]6 - 8.4

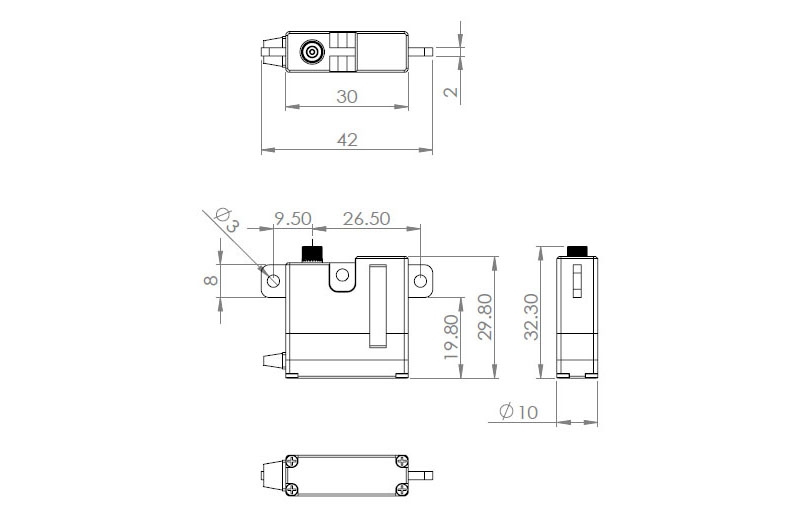

Length [mm]30
Width [mm]10
Height [mm]29.8
Weight [g]22.5
Intended forAeroplanes
Servo motor typeHV Coreless

Download

Instruction Manual17.01.2024
