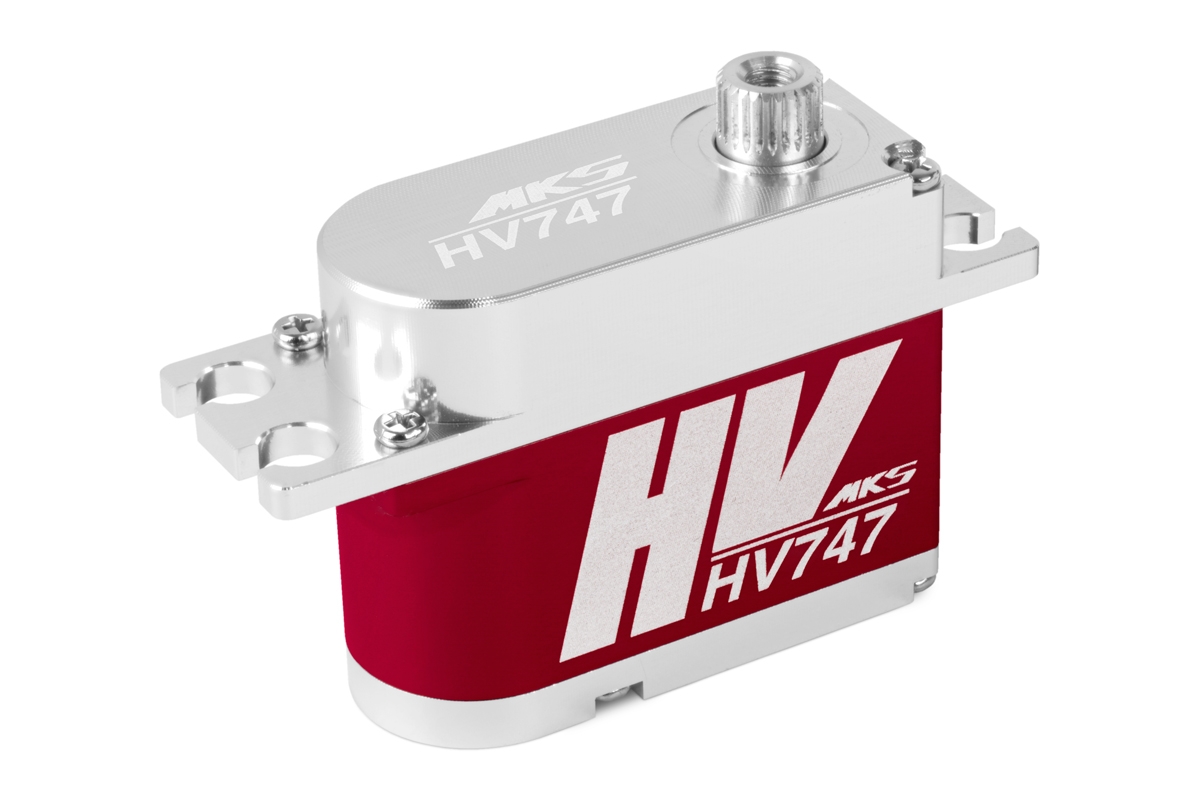

HV747 (0.13s/60°, 15.0kg.cm)

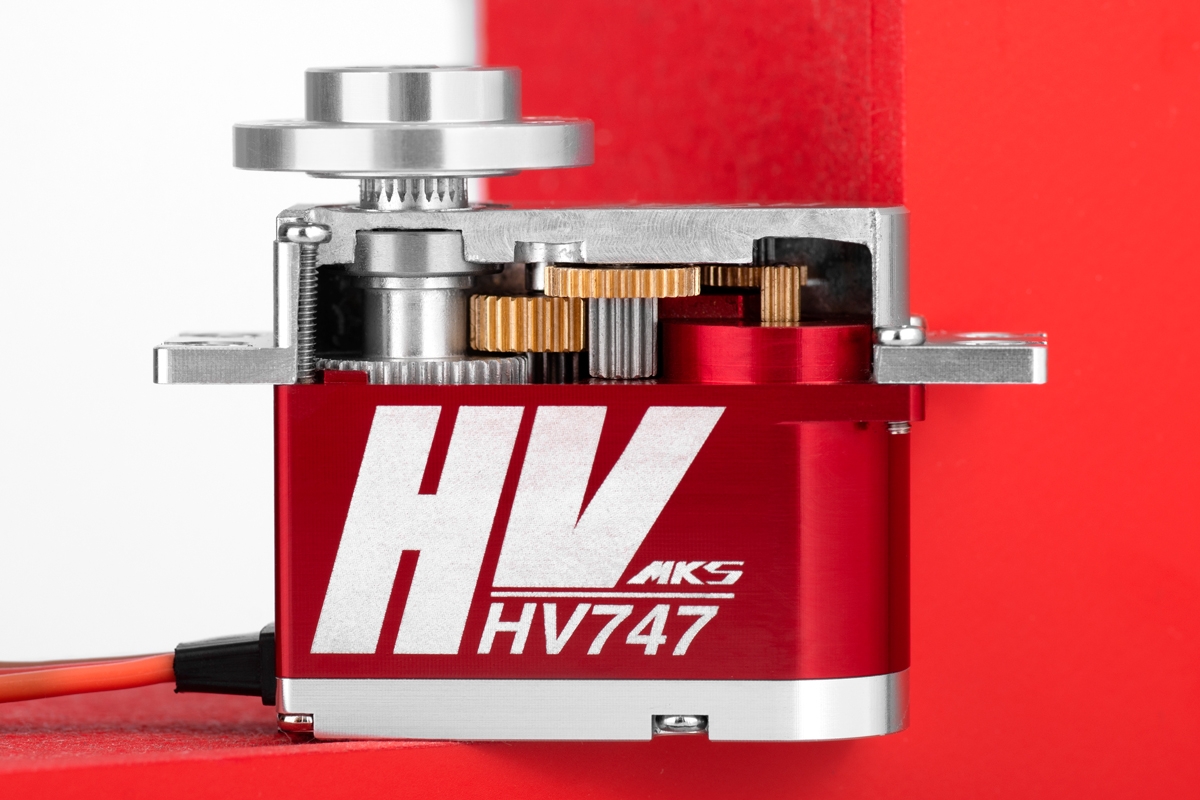

Super high torque/ high speed programmable digital mini servo with titanium gears with twin ballraced output shaft. The high precision no-backlash pre-loaded gears and special high resolution potentiometer make it particularly suitable for controlling rudders and elevators but also ailerons and flaps in high performance gliders and motor models. An aluminium case with regular mounting lugs for perfect cooling even under high loads.

Input voltage range 6.0-7.4 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.
