Code:KAV30.0236
Brand:KAVAN

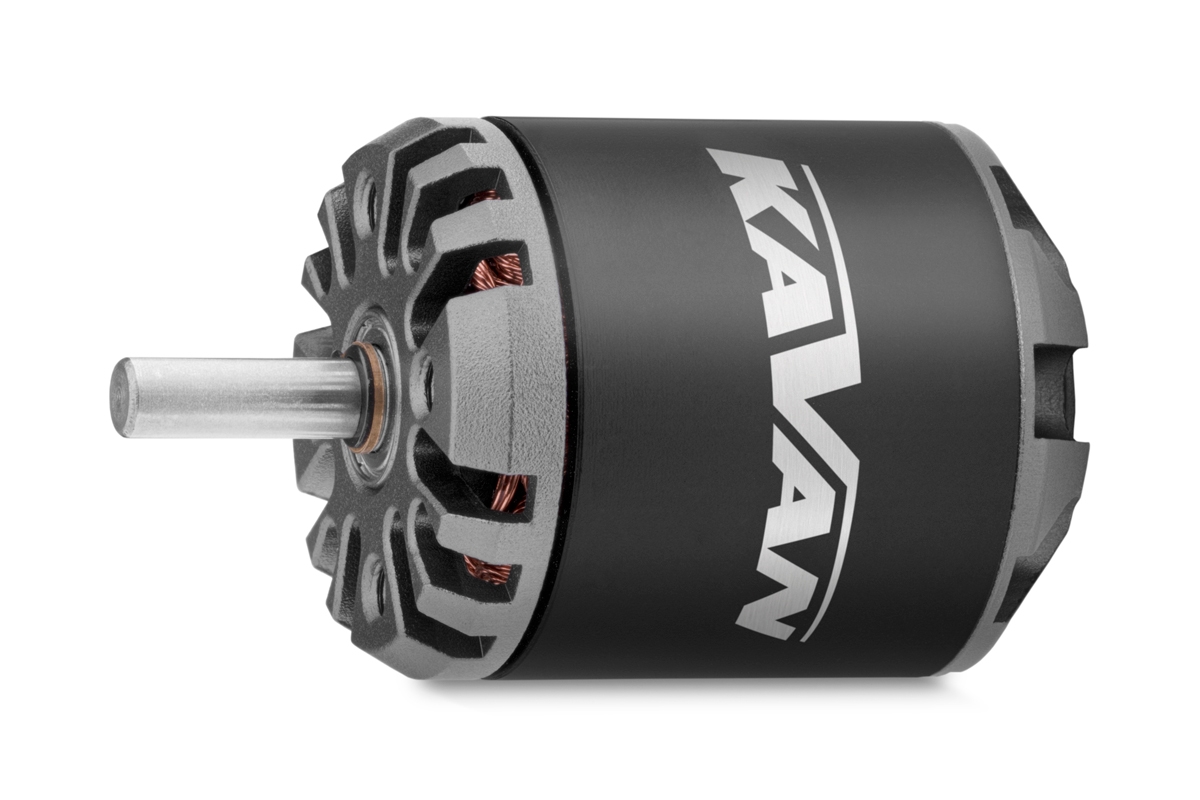

KAVAN Brushless motor C2836-1120

Brushless outrunner motor for model aircraft: glider 950g, trainer 900g, acro 800g, 3D 600g, KV1120 rpm per V, power supply Lixx 2-4s, shaft 4 mm
Not on stock
€27.99
Description
Spare parts
Download

KAVAN C series motors are powerful brushless 14-pole outrunner motors with excellent electrical characteristics, sophisticated design and excellent workmanship. They represent a very good choice for powering your hobby-sport models with excellent performance, good efficiency and a favourable price. They are low speed, high torque motors that handle large diameter propellers and climbs without the need for a gearbox.

Motor marking system: CxxYY-zzzz
C - brushless motor - Outrunner
xx - motor diameter in mm
YY - motor length in mm
zzzz - rpm per V, „KV“

The KAVAN C2836-1120 is a brushless motor designed to power smaller models with a flight weight of up to 950 g, powered by a two to four cell Li-poly battery. It is well suited for fast aerobatic models and warbirds with a span of 800-1000 mm and motor gliders 1400-1600 mm - rather for faster models, which are better suited to smaller diameter propellers with a higher RPM.

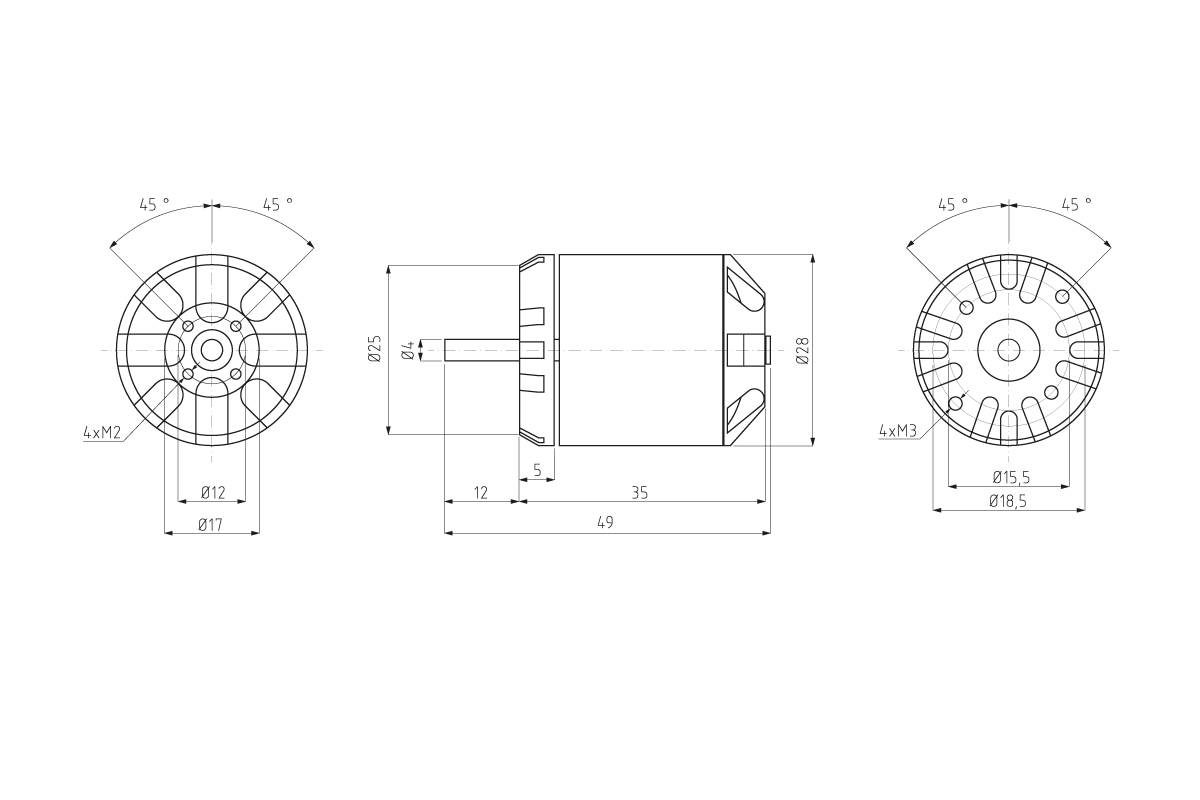

Motor mounting:The KAVAN C2836-1120 is designed for both front and rear mounting. For front mounting behind the motor face, use at least two (opposing) or four M3 bolts that engage the motor face within 3 - 4 mm. The pairs of holes for the fixing screws in the motor face are spaced regularly at 180° on circles of 16 and 19 mm diameter. The motor firewall should be 3 mm Birch aircraft plywood. A rear mounting kit (mounting cross, prop adaptor) is supplied with the motor.

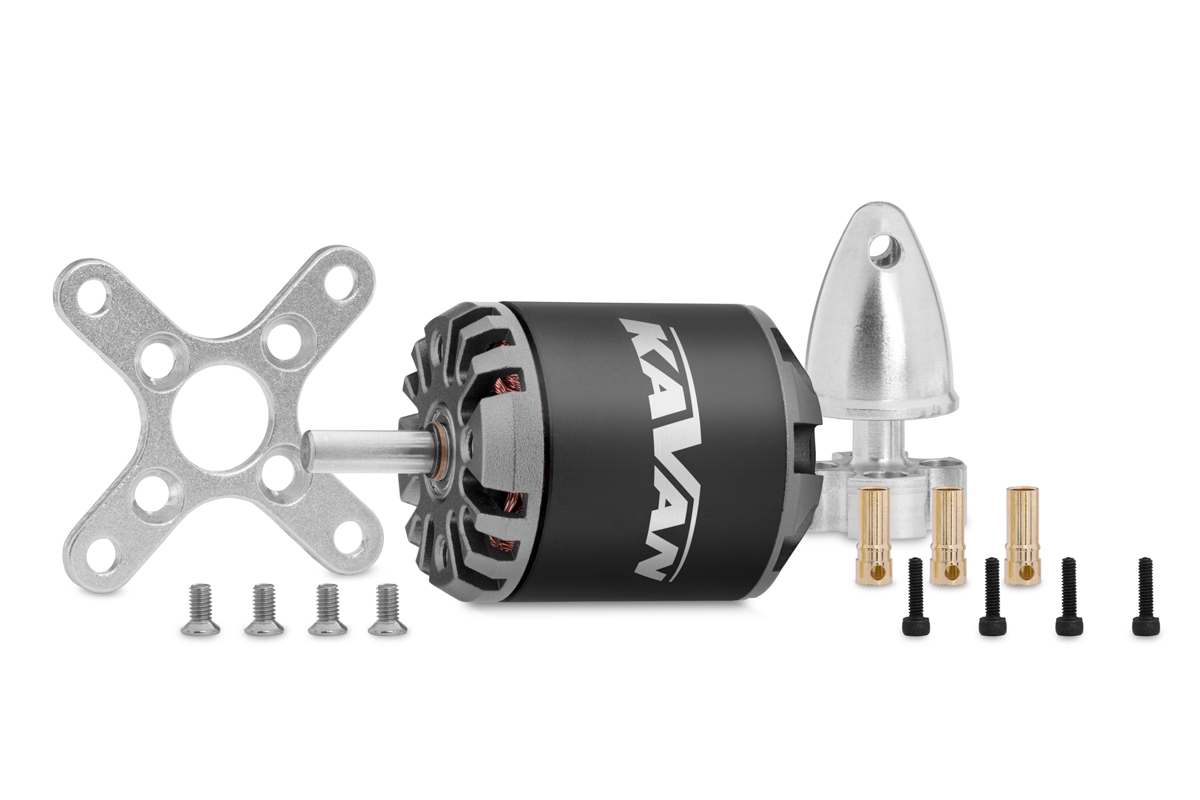

Motor kit includes: motor C2836-1120 with cables and with soldered 3.5 mm gold-plated connectors, rear mounting kit, manual.

Supply voltage LiXX cells: 2 - 4 ; RPM/V [RPM/min/V]: 1120 ; Max. power (30 s/4S LiPo) [W]: 280 ; No load current (2S) [mA]: 800 ; Max. peak current (30 s) [A]: 25 ; Diameter [mm]: 27.8 ; Lenght [mm]: 37 ; Shaft diameter [mm]: 4 ; Weight [g]: 67 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 30 - 35 ; Sailplane up to Weight [g]: 950 ; Trainer up to Weight [g]: 900 ; Acrobat up to Weight [g]: 800 ; 3d up to Weight [g]: 600

Powering LiXX cells2 - 4
RPM/V [ot./min/V]1120
Max. power (30 s/4S LiPo) [W]280
Open-circuit current (2S) [mA]800
Max. peak current (30 s) [A]25
Diameter [mm]27.8
Length [mm]37
Shaft diameter [mm]4
Weight [g]67
Poles count14
Timing [°]15 - 25
ESC [A] 30 - 35
Weight of glider (up-to) [g]950
Weight of trainer (up-to) [g]900
Weight of acrobat (up-to) [g]800
Weight of 3D (up-to) [g]600
