Code: KAV30.0232
Brand: KAVAN

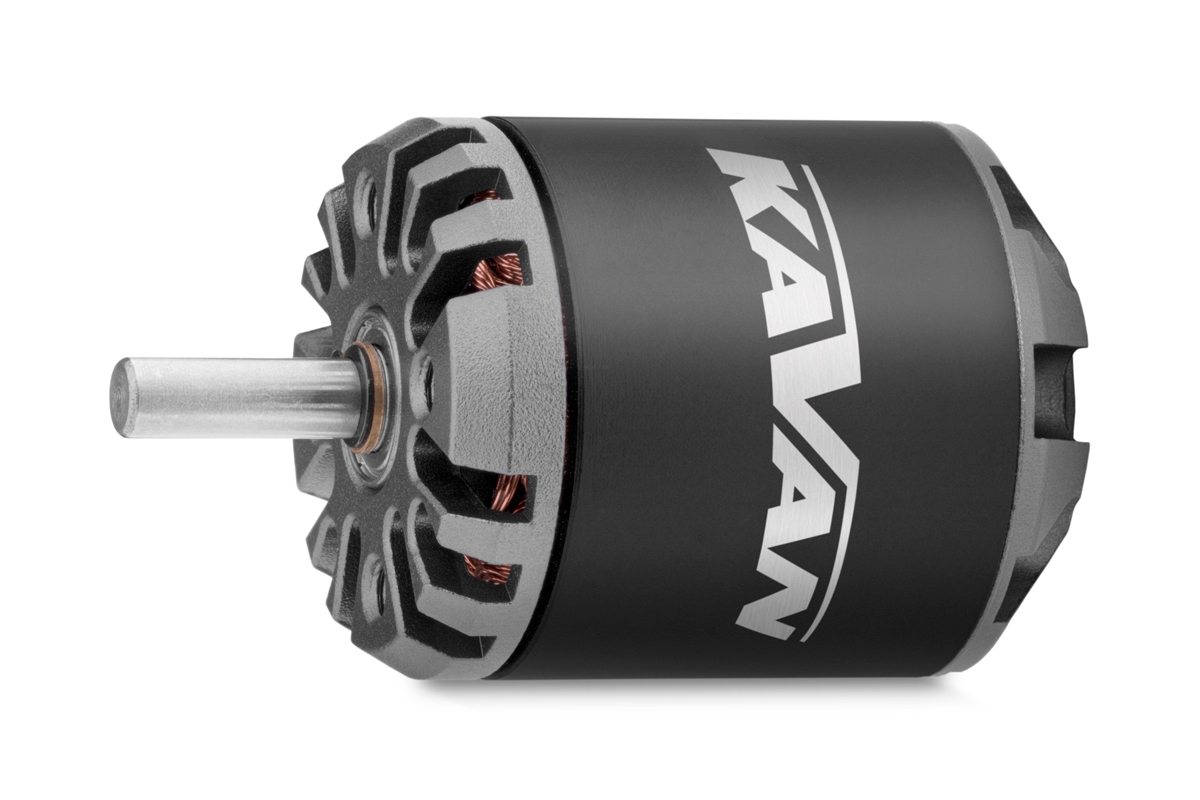

KAVAN Brushless motor C2836-915

Brushless outrunner motor for model aircraft: glider 1050g, trainer 900g, acro 800g, 3D 600g, KV915 rpm per V, power supply Lixx 2-4s, shaft 4 mm
On Stock
27,99 €
Description
Spare parts
Download

KAVAN C series motors are powerful brushless 14-pole outrunner motors with excellent electrical characteristics, sophisticated design and excellent workmanship. They represent a very good choice for powering your hobby-sport models with excellent performance, good efficiency and a favourable price. They are low speed, high torque motors that handle large diameter propellers and climbs without the need for a gearbox.

Motor marking system: CxxYY-zzzz
C - brushless motor - Outrunner
xx - motor diameter in mm
YY - motor length in mm
zzzz - rpm per V, „KV“

The KAVAN C2836-915 is a brushless motor designed to power smaller models with a flight weight of up to 1050 g, powered by a two to four cell Li-poly battery. It is well suited for models such as the Multiplex Easy Glider and similar lightweight motor powered gliders.

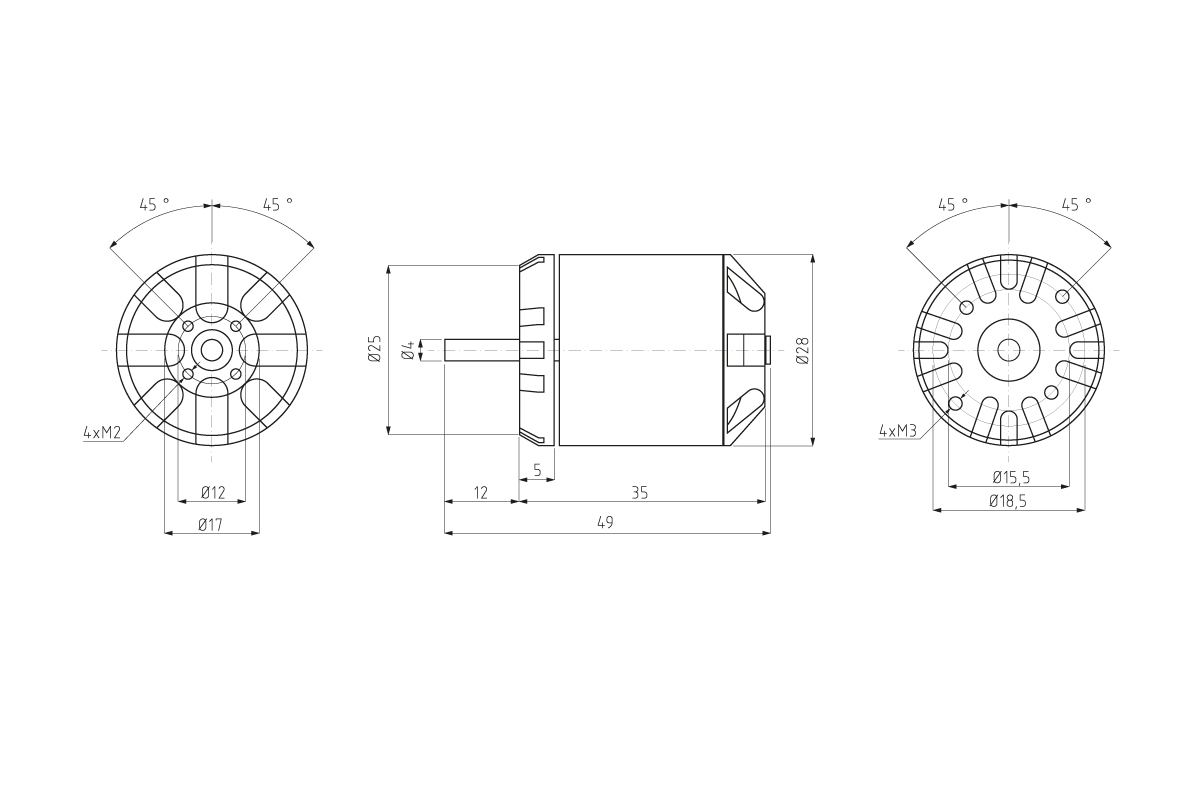

Motor mounting:The KAVAN C2836-915 is designed for both front and rear mounting. For front mounting behind the motor face, use at least two (opposing) or four M3 bolts that engage the motor face within 3 - 4 mm. The pairs of holes for the fixing screws in the motor face are spaced regularly at 180° on circles of 16 and 19 mm diameter. The motor firewall should be 3 mm Birch aircraft plywood. A rear mounting kit (mounting cross, prop adaptor) is supplied with the motor.

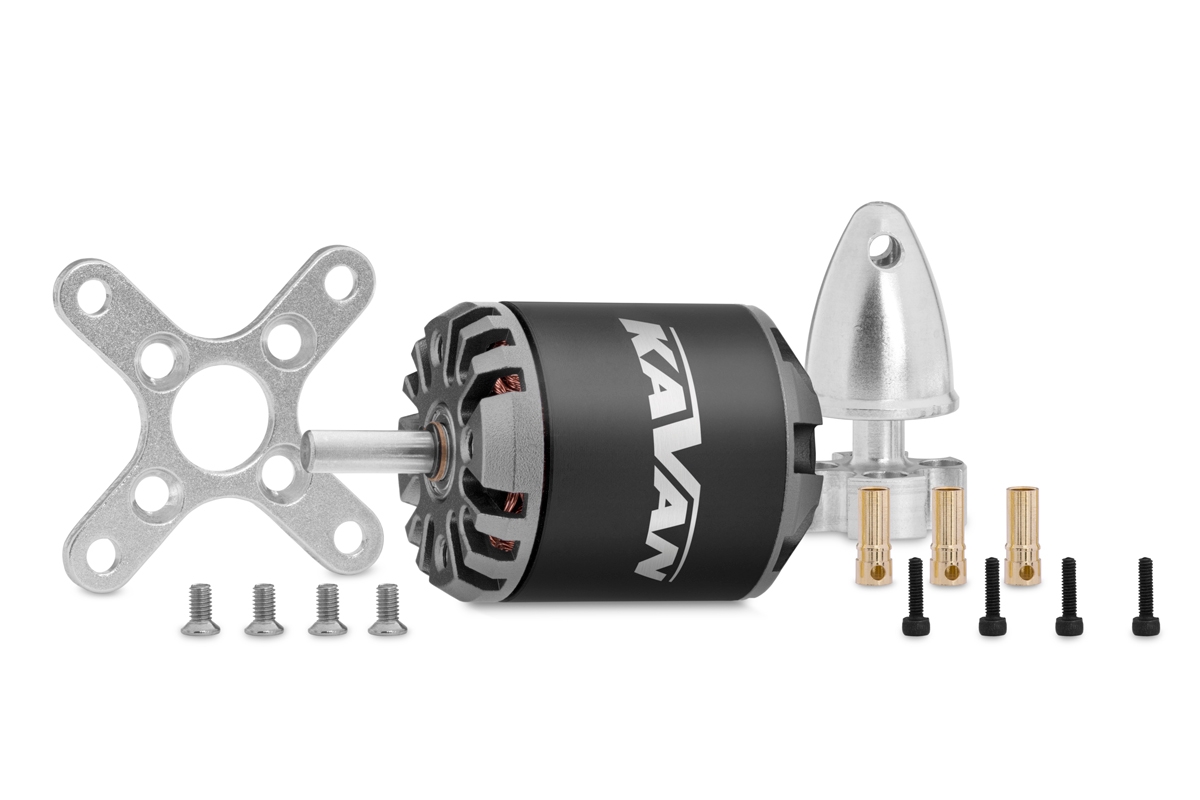

Motor kit includes: motor C2836-915 with cables and with soldered 3.5 mm gold-plated connectors, rear mounting kit, manual.

Supply voltage LiXX cells: 2 - 4 ; RPM/V [RPM/min/V]: 915 ; Max. power (30 s/4S LiPo) [W]: 220 ; No load current (2S) [mA]: 700 ; Max. peak current (30 s) [A]: 20 ; Diameter [mm]: 27.8 ; Lenght [mm]: 37 ; Shaft diameter [mm]: 4 ; Weight [g]: 67 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 25 - 30 ; Sailplane up to Weight [g]: 1050 ; Trainer up to Weight [g]: 900 ; Acrobat up to Weight [g]: 800 ; 3d up to Weight [g]: 600

Powering LiXX cells2 - 4
RPM/V [ot./min/V]915
Max. power (30 s/4S LiPo) [W]220
Open-circuit current (2S) [mA]700
Max. peak current (30 s) [A]20
Diameter [mm]27.8
Length [mm]37
Shaft diameter [mm]4
Weight [g]67
Poles count14
Timing [°]15 - 25
ESC [A] 25 - 30
Weight of glider (up-to) [g]1050
Weight of trainer (up-to) [g]900
Weight of acrobat (up-to) [g]800
Weight of 3D (up-to) [g]600
