Code: KAV30.2013
Barcode: 8596450022515
Brand: KAVAN

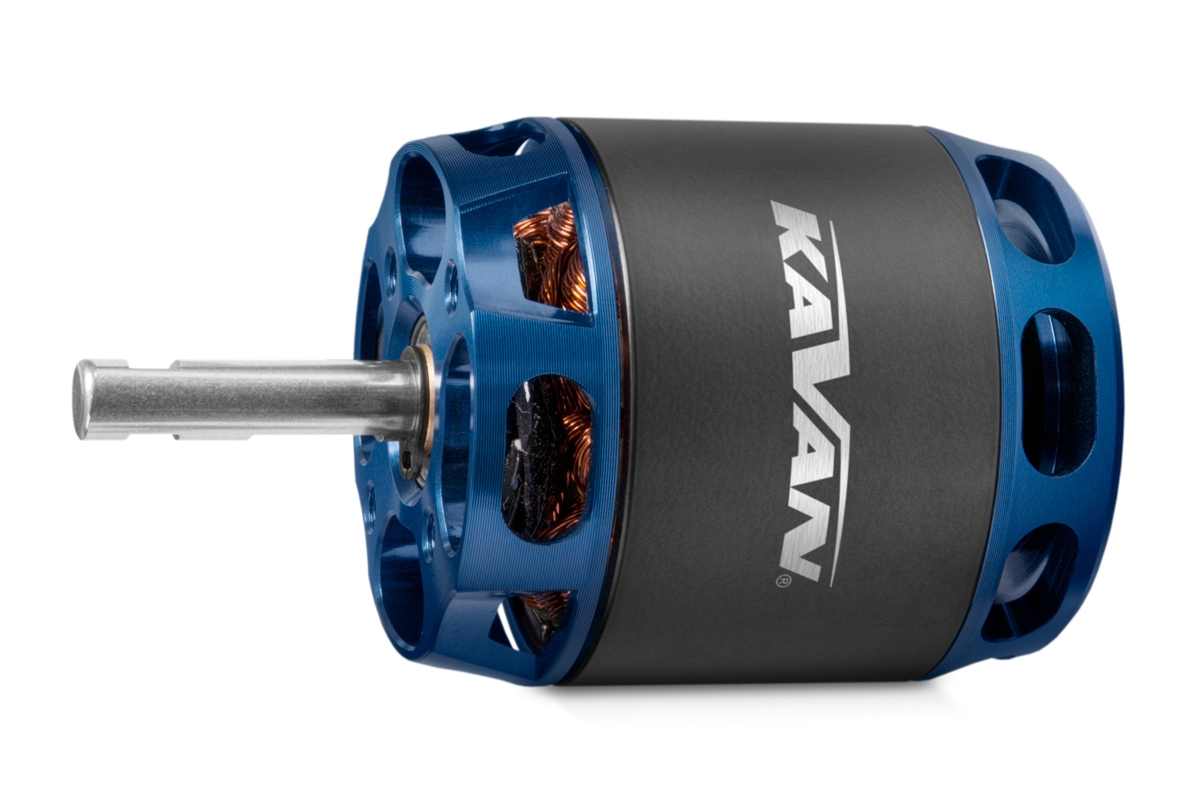

KAVAN Brushless Motor PRO 2836-1050

Outrunner brushless electric motor for model aeroplanes: glider 950g, trainer 900g, acro 800g, 3D 600g, KV1050 RPM/V, input voltage 3-4S Lixx. 4.0mm shaft. Alternative designation based on the stator dimension: 2216-1050.
On Stock
30,40 €
Description
Spare parts
Download

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

Motor Designation System: PRO xxYY-zzzz
PRO - brushless outrunner electric motor
xx - motor diameter in mm
YY - motor length in mm
zzzz - revolution per minute per Volt (RPM/V), “KV“

KAVAN PRO 2836-1050

KAVAN PRO 2836-1050 is a motor for model aeroplanes up to 1200 g all-up weight powered by 3-4S LiPo flight battery pack. It is great for electric powered gliders like MULTIPLEX® Easy Glider and similar.

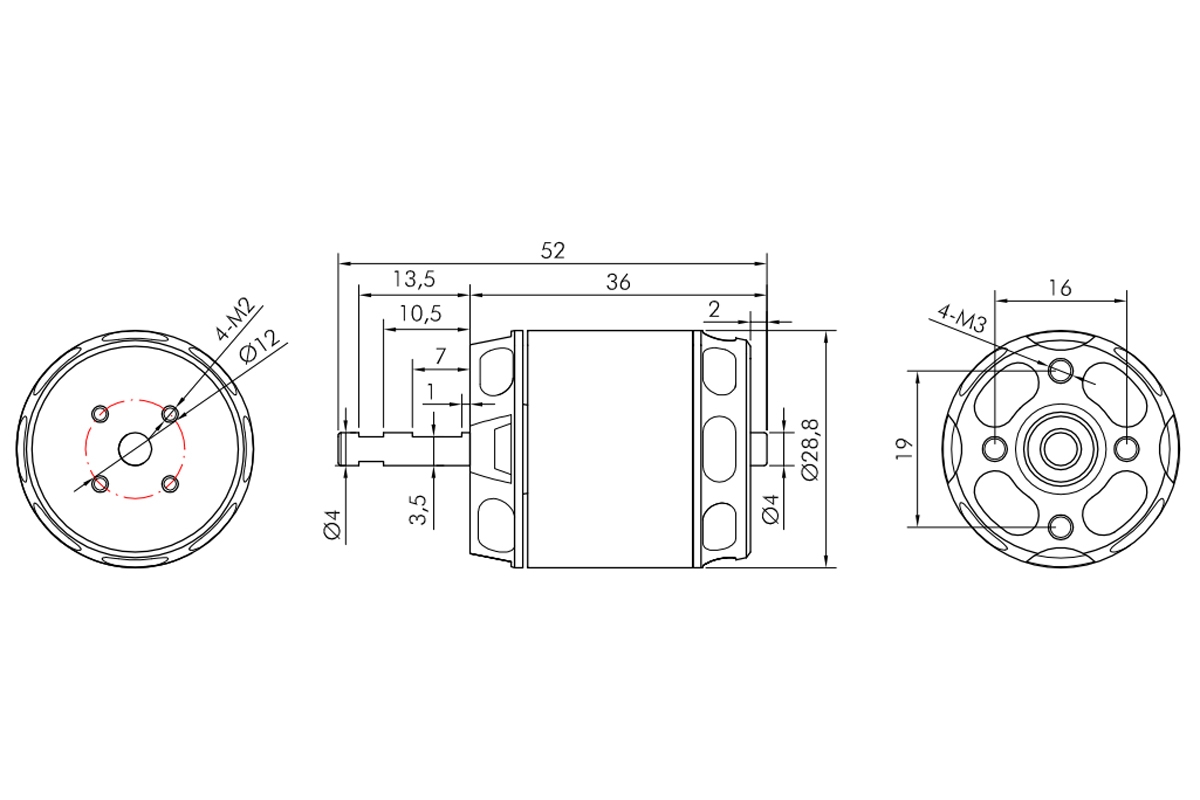

Motor installation: KAVAN 2836-1050 has been designed both for the front and radial mount installation. Front mount: Use at least two (opposite) or four M3 screws; these may not go deeper than 3-4 mm into the front case. Radial mount: Use four M3 screws to secure the mounting cross to the firewall. The firewall should be made of 2.0-2.5 mm plywood. The radial mount set is supplied with the motor.

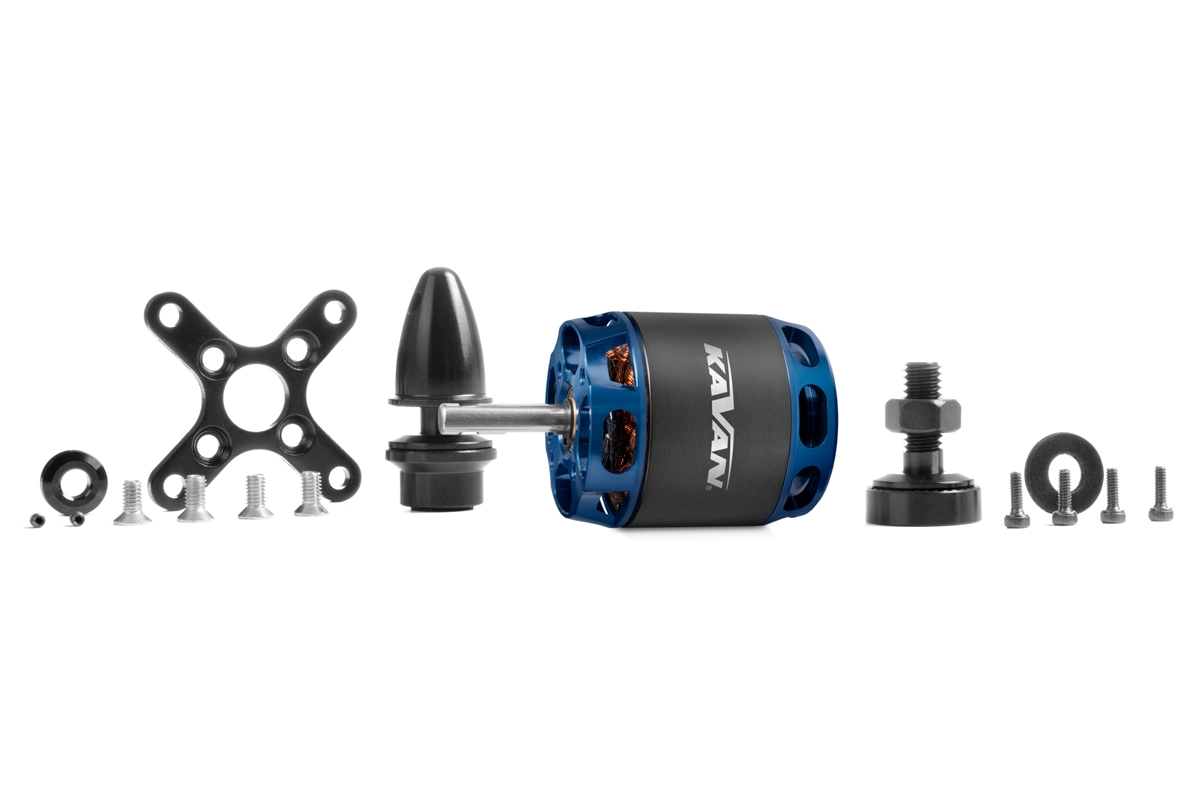

The motor set contents: KAVAN PRO 2836-1050 motor w. cables (3.5 mm gold-plated connectors), radial mount set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual

Note: Alternative designation based on the stator dimensions: 2216-1050.

Powering LiXX cells3 - 4
RPM/V [ot./min/V]1050
Max. power (180 s) [W]470
Internal resistance [mOhm]64
Open-circuit current (při 10 V) [A]1
Max. peak current (180 s) [A]30
Diameter [mm]28.8
Length [mm]34
Length celková [mm]52
Shaft diameter [mm]4
Weight [g]83
Poles count14
Timing [°]20 - 25
ESC [A] 30 - 40
Weight of glider (up-to) [g]950
Weight of trainer (up-to) [g]900
Weight of acrobat (up-to) [g]800
Weight of 3D (up-to) [g]600
