Code: KAV30.2016
Barcode: 8596450022546
Brand: KAVAN

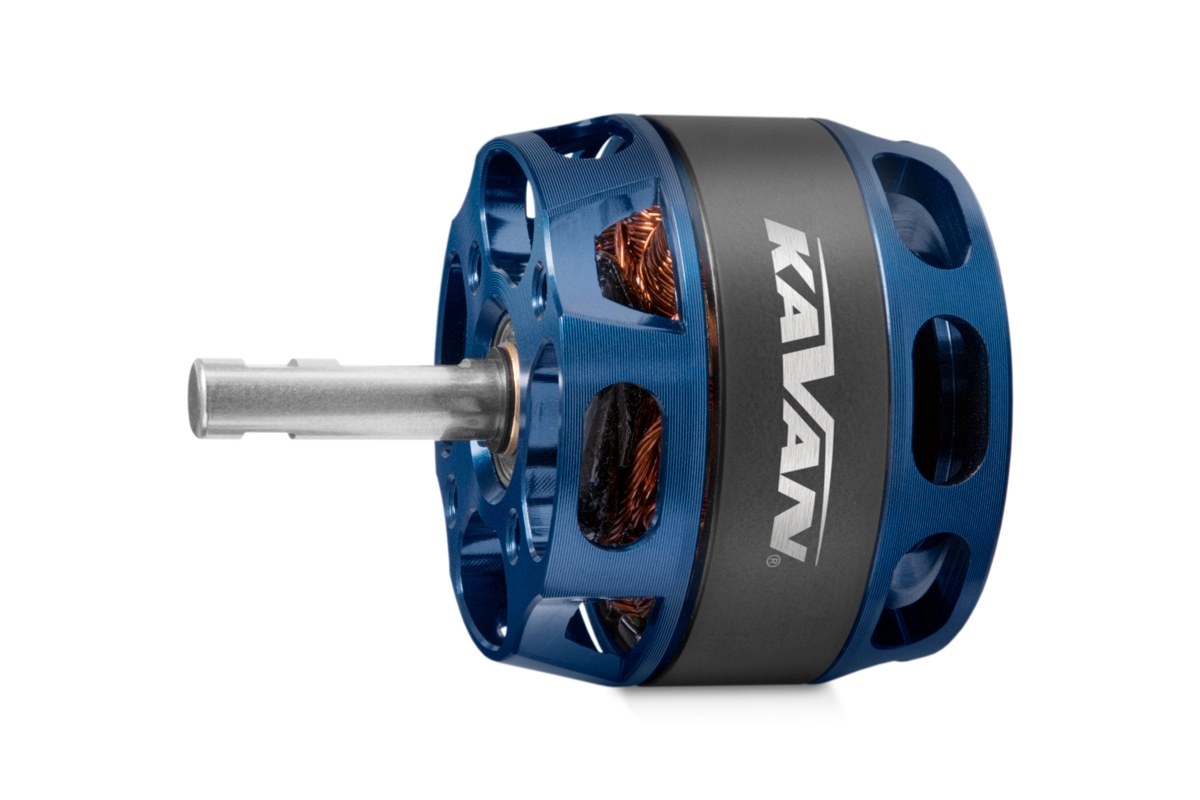

KAVAN Brushless Motor PRO 3530-1200

Outrunner brushless electric motor for model aeroplanes: glider 1200g, trainer 1000g, acro 850g, 3D 750g, KV1200 RPM/V, input voltage 3-4S Lixx. 5.0mm shaft. Alternative designation based on the stator dimension: 2808-1120.
On Stock
39,60 €
Description
Spare parts
Download

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

Motor Designation System: PRO xxYY-zzzz
PRO - brushless outrunner electric motor
xx - motor diameter in mm
YY - motor length in mm
zzzz - revolution per minute per Volt (RPM/V), “KV“

KAVAN PRO 3530-1200

KAVAN PRO 3530-1200 is a motor for model aeroplanes up to 1200 g all-up weight powered by 3-4S LiPo flight battery pack. It is great for electric powered gliders like MULTIPLEX® Easy Glider, Gemini and similar.

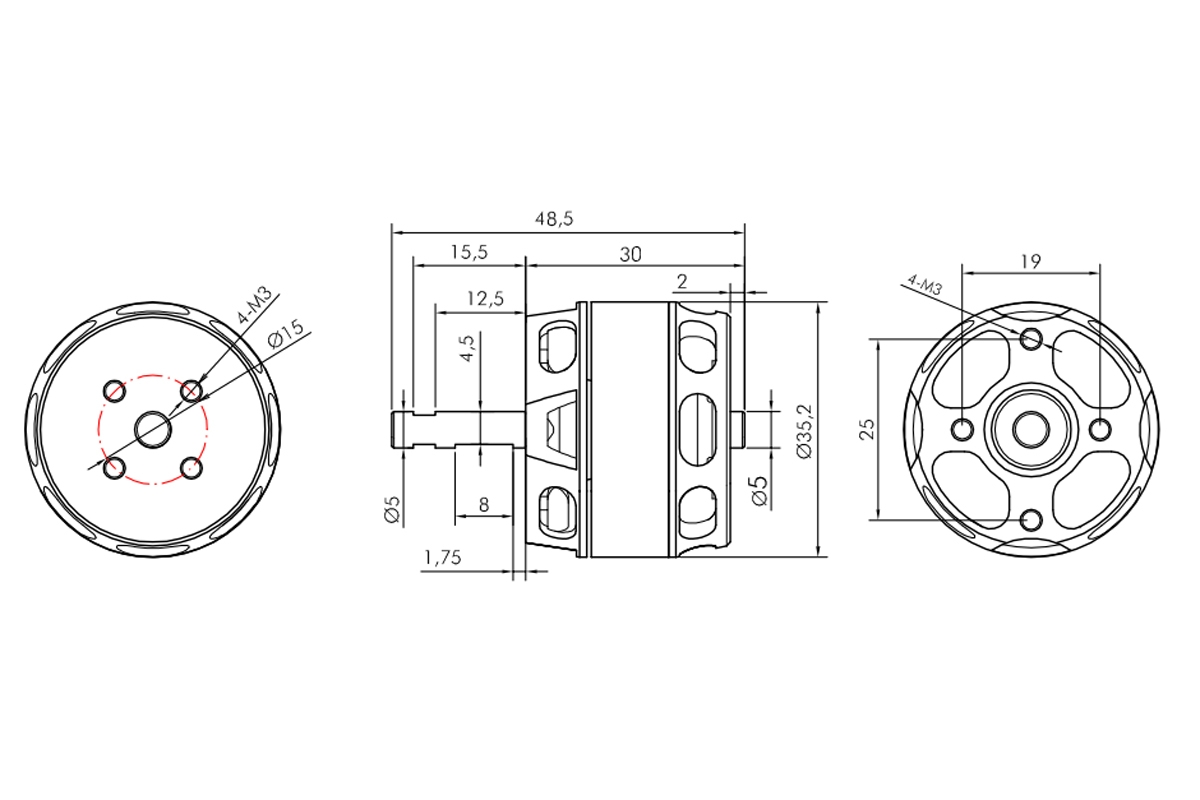

Motor installation: KAVAN 3530-1200 has been designed both for the front and radial mount installation. Front mount: Use four M3 screws; these may not go deeper than 3-4 mm into the front case. Radial mount: Use four M3 screws to secure the mounting cross to the firewall. The firewall should be made of 3.0 mm plywood. The radial mount set is supplied with the motor.

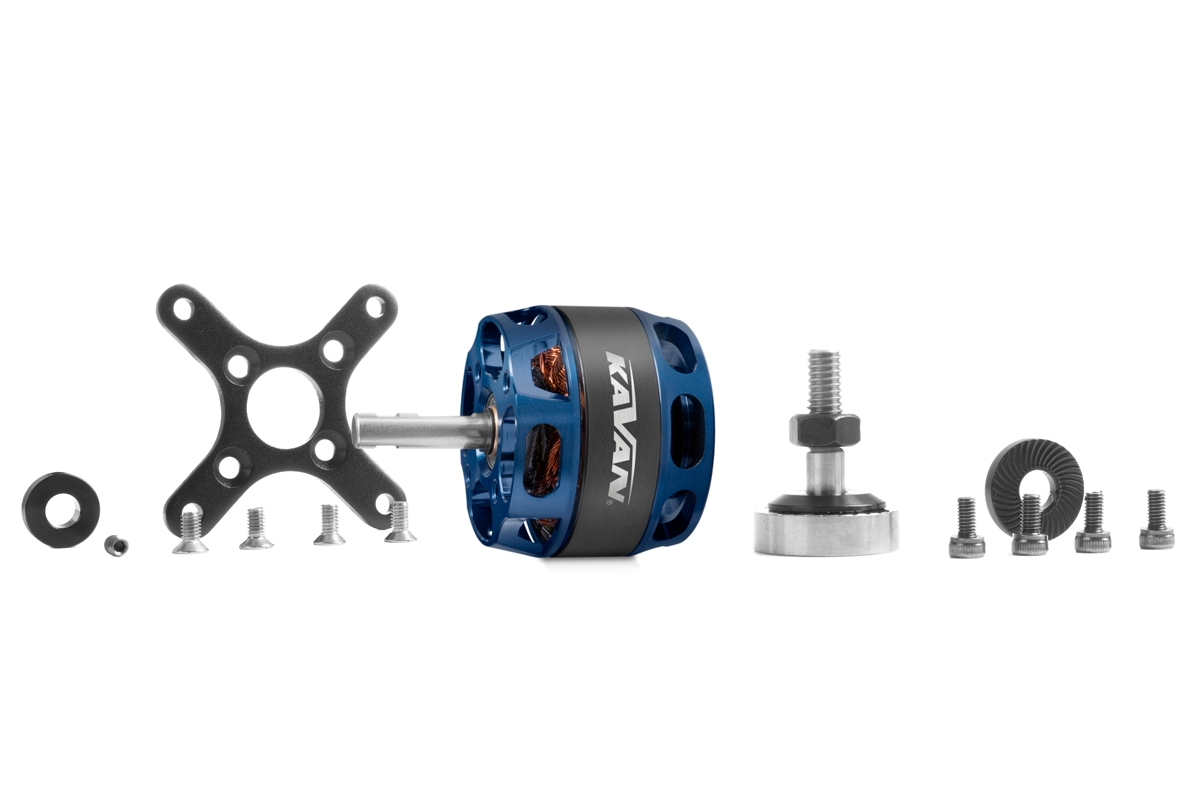

The motor set contents: KAVAN PRO 3530-1200 motor w. cables (3.5 mm gold-plated connectors), radial mount set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual

Note: Alternative designation based on the stator dimensions: 2808-1200.

Powering LiXX cells3 - 4
RPM/V [ot./min/V]1200
Max. power (180 s) [W]300
Internal resistance [mOhm]46.5
Open-circuit current (při 10 V) [A]1.24
Max. peak current (180 s) [A]25
Diameter [mm]35.2
Length [mm]28
Length celková [mm]48.5
Shaft diameter [mm]5
Weight [g]81
Poles count14
Timing [°]20 - 25
ESC [A] 30 - 40
Weight of glider (up-to) [g]1200
Weight of trainer (up-to) [g]1000
Weight of acrobat (up-to) [g]850
Weight of 3D (up-to) [g]750
