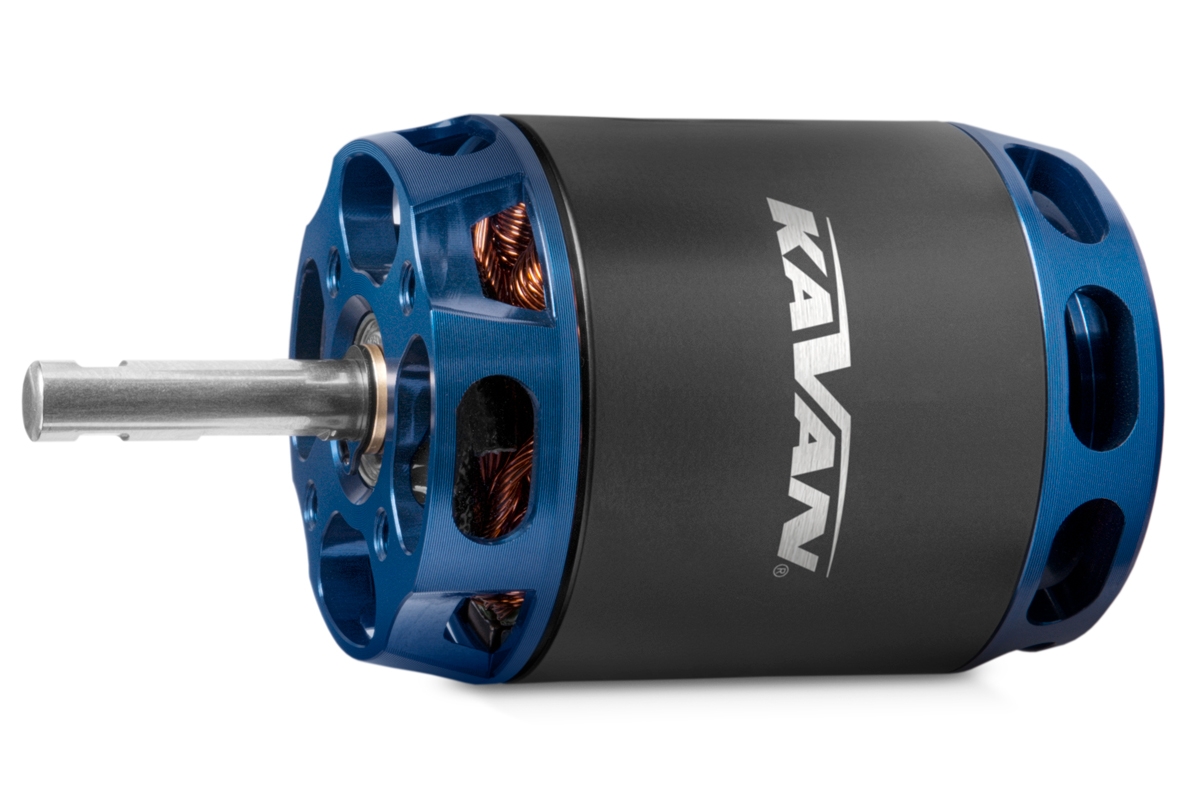

KAVAN Brushless Motor PRO 3548-900

Outrunner brushless electric motor for model aeroplanes: glider 2600g, trainer 2500g, acro 2300g, 3D 1400g, KV900 RPM/V, input voltage 3-4S Lixx. 5.0mm shaft. Alternative designation based on the stator dimension: 2826-900.
On Stock
53,90 €
Description
Spare parts
Download

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

Motor Designation System: PRO xxYY-zzzz
PRO - brushless outrunner electric motor
xx - motor diameter in mm
YY - motor length in mm
zzzz - revolution per minute per Volt (RPM/V), “KV“

KAVAN PRO 3548-900

KAVAN PRO 3548-900 is a motor for model aeroplanes up to 2600 g all-up weight powered by 3-4S LiPo flight battery pack. It is great for 2000-3000 mm electric powered gliders, 1300-1400 mm EPO warbirds - faster scale and aerobatic models.

Motor installation: KAVAN 3548-900 has been designed both for the front and radial mount installation. Front mount: Use four M3 screws; these may not go deeper than 3-4 mm into the front case. Radial mount: Use four M3 screws to secure the mounting cross to the firewall. The firewall should be made of 5.0 mm plywood. The radial mount set is supplied with the motor.

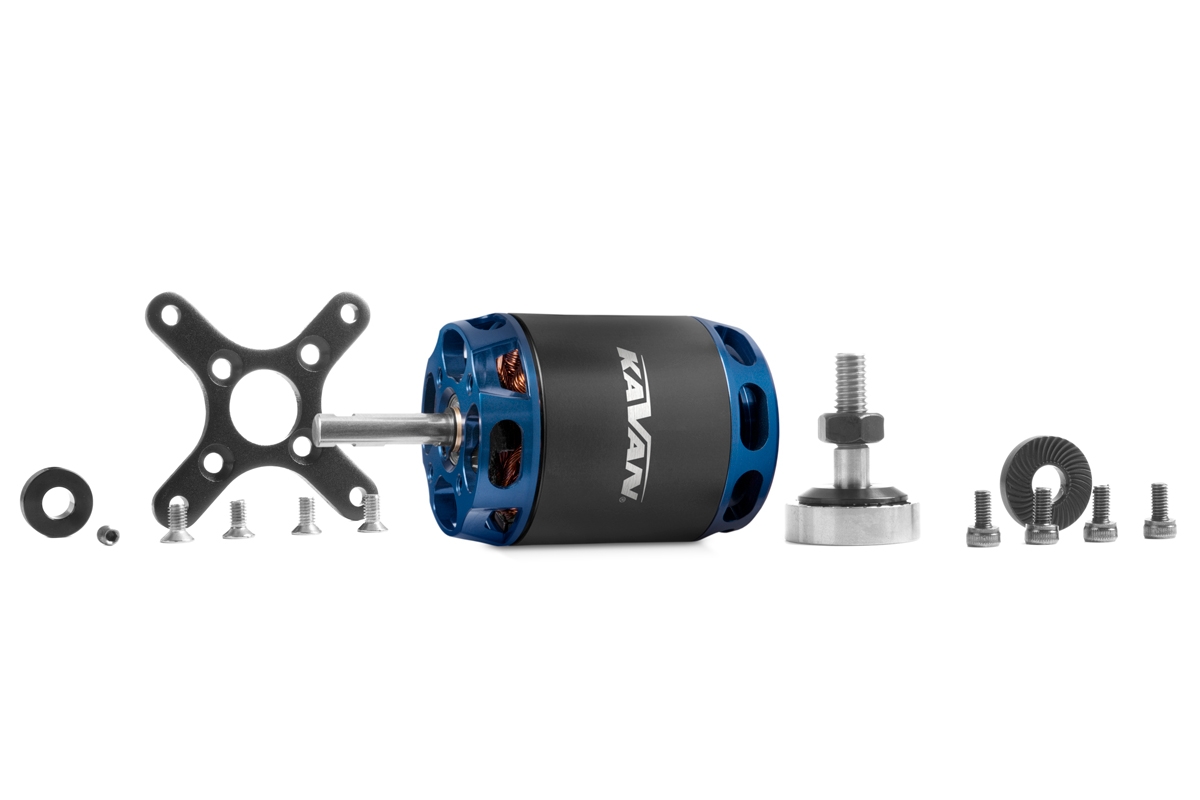

The motor set contents: KAVAN PRO 3548-900 motor w. cables (3.5 mm gold-plated connectors), radial mount set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual

Note: Alternative designation based on the stator dimensions: 2826-900.

Powering LiXX cells3 - 4
RPM/V [ot./min/V]900
Max. power (180 s) [W]820
Internal resistance [mOhm]24
Open-circuit current (při 10 V) [A]2.2
Max. peak current (180 s) [A]57

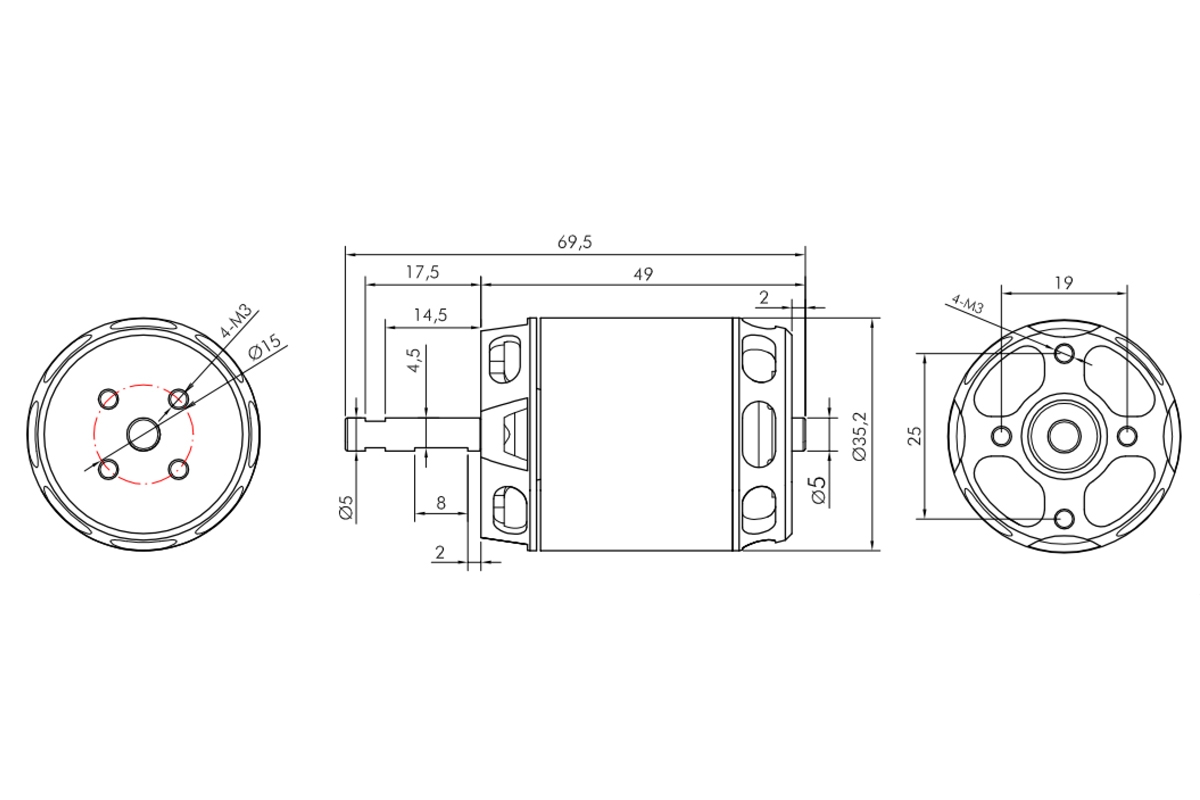

Diameter [mm]35.2
Length [mm]47
Length celková [mm]69.5
Shaft diameter [mm]5
Weight [g]175
Poles count14
Timing [°]20 - 25
ESC [A] 60 - 70
Weight of glider (up-to) [g]2600
Weight of trainer (up-to) [g]2500
Weight of acrobat (up-to) [g]2300
Weight of 3D (up-to) [g]1400
