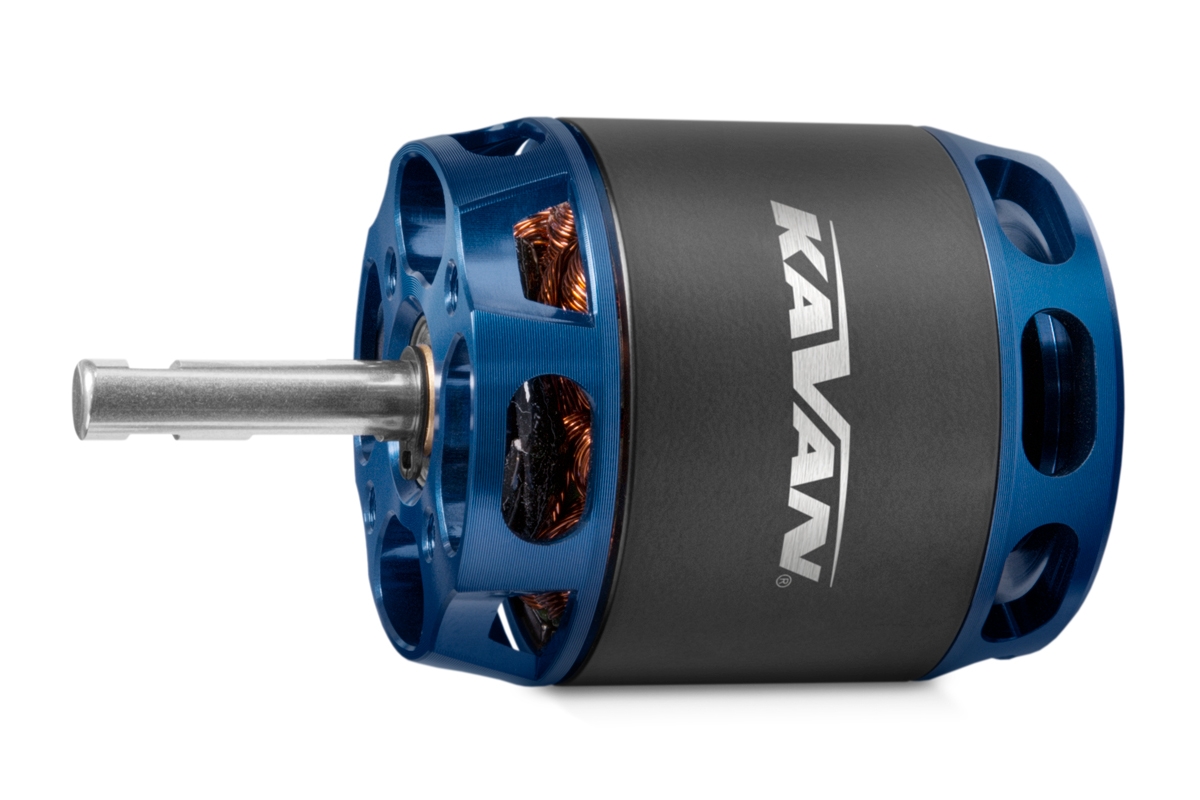

KAVAN Brushless Motor PRO 4345-730

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

KAVAN PRO 4345-730

KAVAN PRO 4345-730 is a motor for model aeroplanes up to 3000 g all-up weight powered by 3-4S LiPo flight battery pack. It is great for EPO warbirds, SIG Smith Miniplane etc. - scale and aerobatic models.

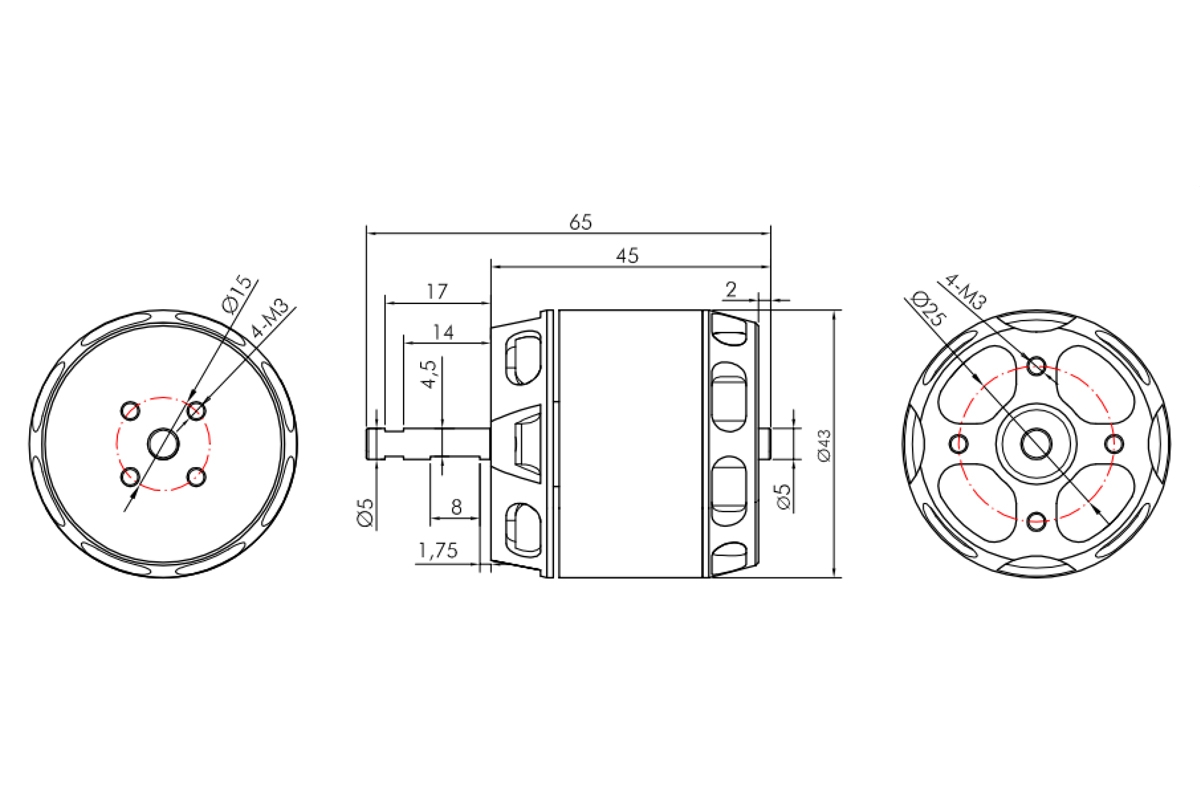

Motor installation: KAVAN 4345-730 has been designed both for the front and radial mount installation. Front mount: Use four M3 screws; these may not go deeper than 3-4 mm into the front case. Radial mount: Use four M3 screws to secure the mounting cross to the firewall. The firewall should be made of 5.0-6.0 mm plywood. The radial mount set is supplied with the motor.

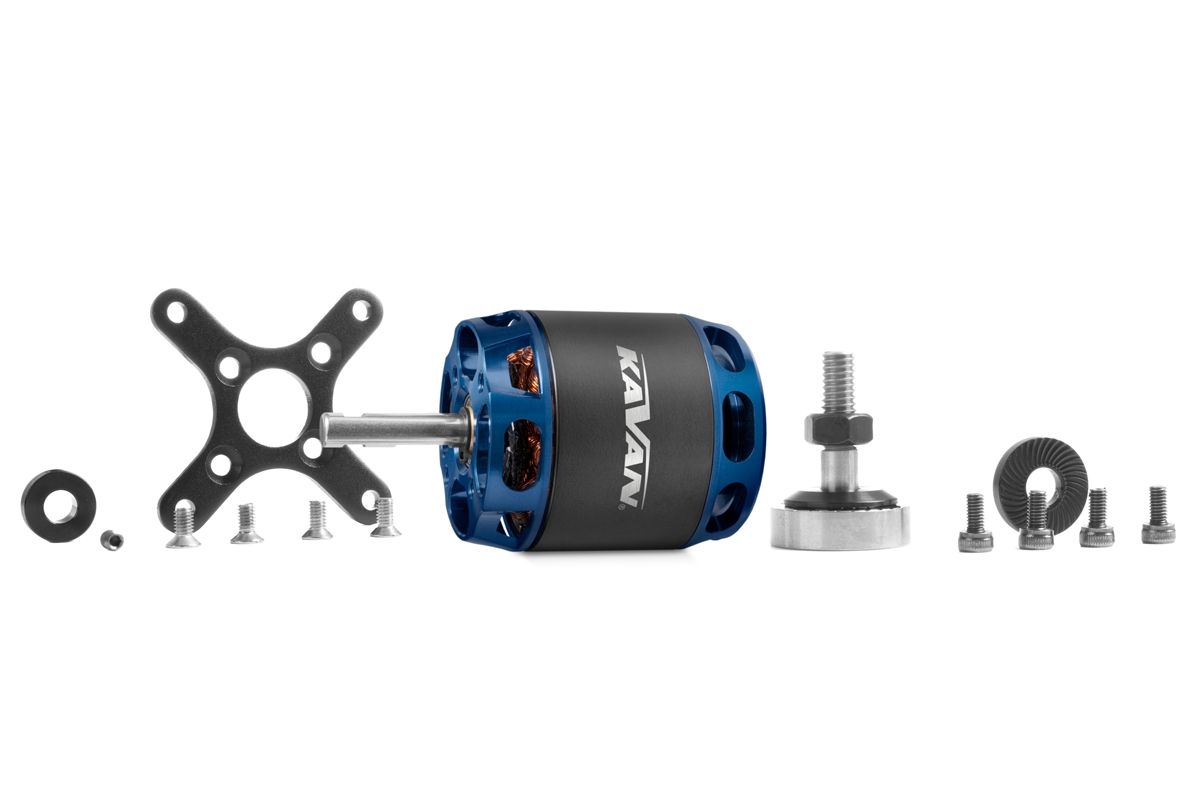

The motor set contents: KAVAN PRO 4345-730 motor w. cables (4 mm gold-plated connectors), radial mount set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual

Note: Alternative designation based on the stator dimensions: 3520-730.
