KAVAN Brushless Motor PRO 7025-510

KAVAN PRO series motors are high performance 14- pole or more brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

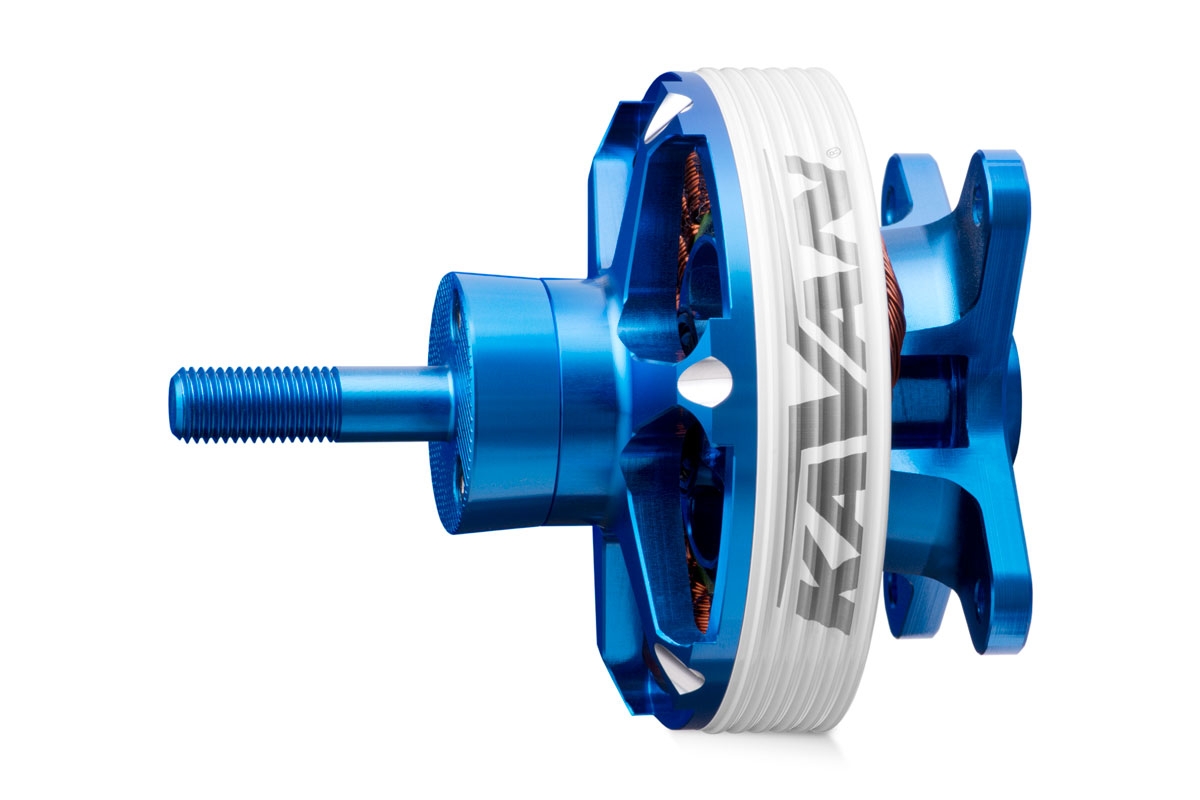

KAVAN PRO 7025-510

KAVAN PRO 7025-510 is a 28-pole brushless motor for model aeroplanes up to 5500 g all-up weight powered by 4-6S LiPo flight battery pack. It is great for scale and aerobatic models originally designed for .60-.90 (10-15 ccm) two-stroke glow engines.

Motor installation: KAVAN 7025-510 has been designed for the radial mount installation; the mounting cross is an integral part of the motor. Use four M4 steel screws; the firewall should be made of 6.0-8.0 mm plywood.

ESC: Be sure the ESC you are using actually is designed to work with multi-pole motors (many regular ESCs designed with 2-14pole motors in mind might not work properly).

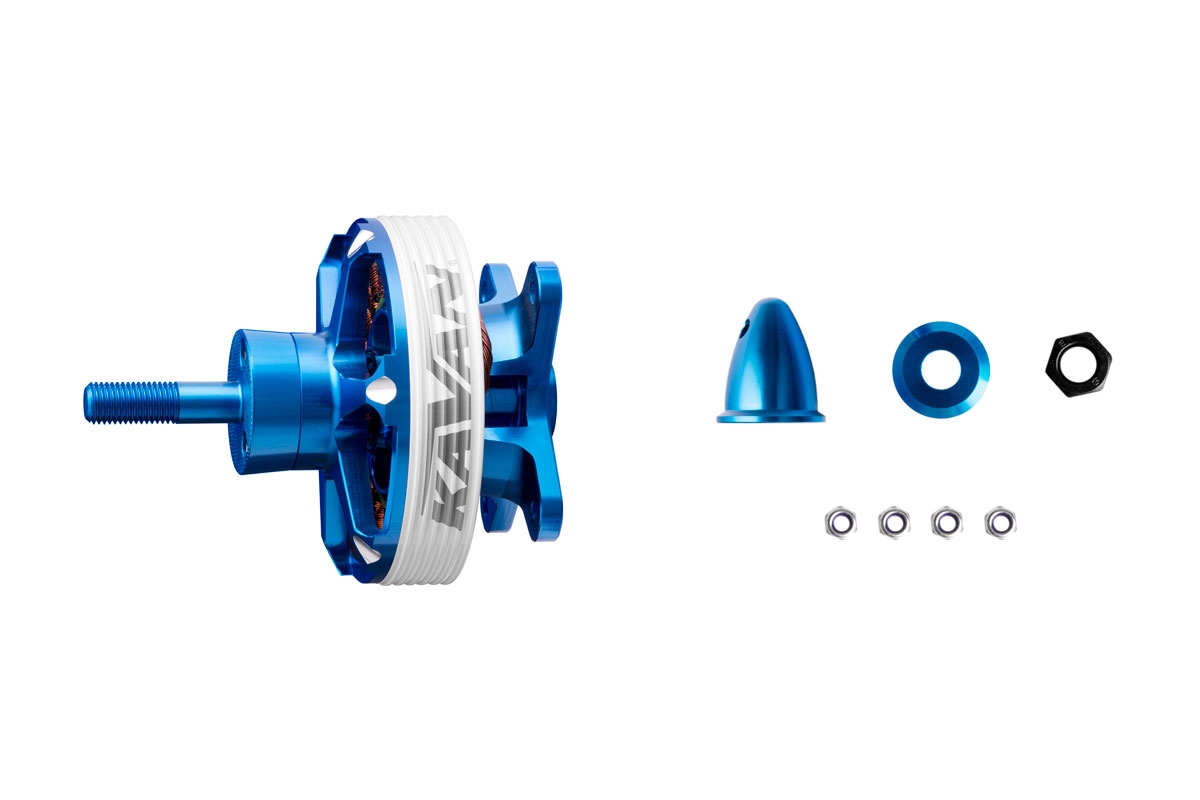

The motor set contents: KAVAN PRO 7025-510 motor w. cables (4 mm gold-plated connectors), propeller nut set. The full instruction manual can be downloaded here: KAVAN PRO 5050+ Brushless Motors Instruction Manual

Note: Alternative designation based on the stator dimensions: 6210-510.
