Code:KAV34.1050
Barcode:8596450035904
Brand:KAVAN

KAVAN C50 Duo balanced charger 2x250W

Palm-size dual channel DC fast charger with balancers for 1-16 cells NiCd/NiMH, 1-6 cells Li-Po/Li-ion/Li-Fe/LiHV/U-LiHV, 2-20V Pb with current 0,2-10A (max. 2x250W or 1x 400W/0,2-16A in parallel mode). Power supply 10-30V DC. Internal resistance measurement, USB-C port for firmware update.
On Stock
€71.90
Description

The KAVAN C50 Duo 2x250W miniature charger is a two-channel smart charger with power supply from a car battery/stabilised mains supply and a very simple and intuitive operation. C50 Duo can charge common cell-types (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), plus it features built-in six-channel balancers to ensure safe charging of Lithium batteries. Charger is equipped with a color LCD and programming buttons, which offer you more comfortable and very clear parameter setting, control and monitoring of the charging process.

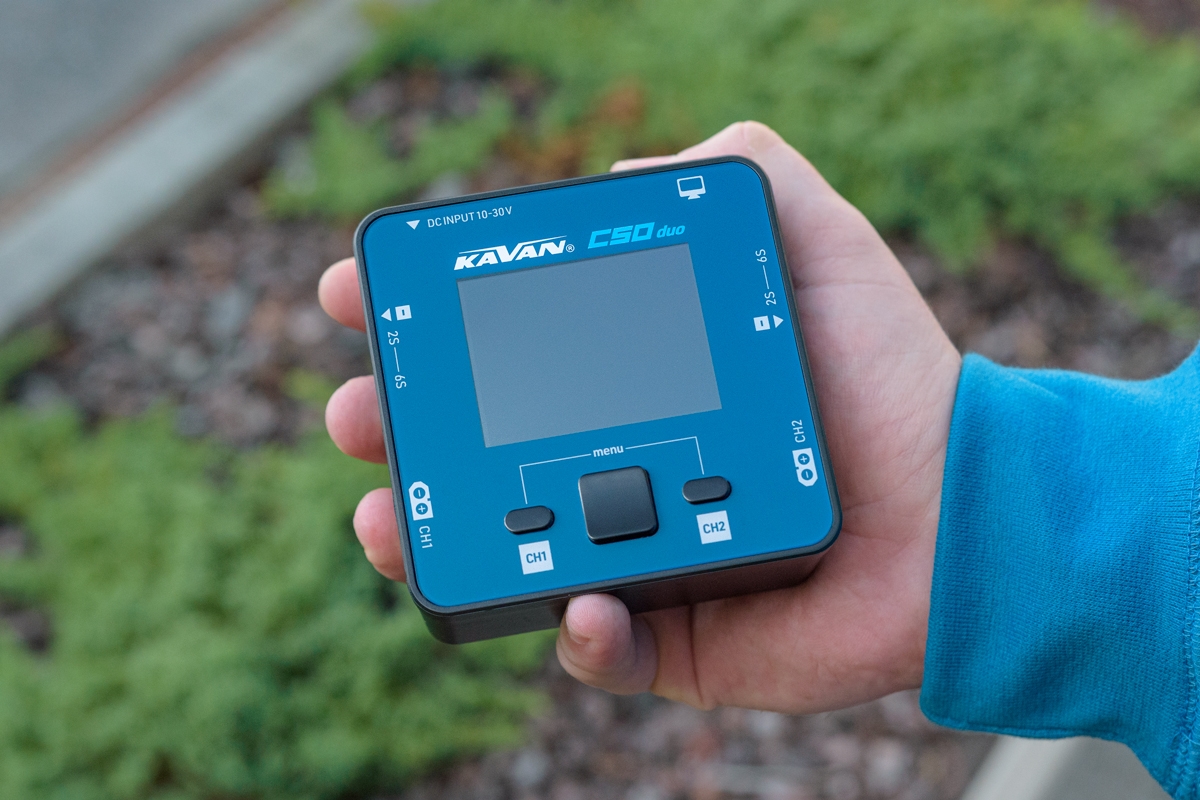

In addition to a compact „palm-size“ design and intuitive operation, worth a special mention is:

  • Program for new high-voltage lithium batteries LiHV with an output voltage for charging of up to 4,35 V and ULiHV with an output voltage for charging of up to 4,45 V
  • Option of synchronous operation of both channels for charging two identical batteries or parallel charging of one battery with up to 400 W of power
  • Adjustable end voltage for charging lithium batteries (allows more gentle charging that pilots like, or brutal over-charging suitable for car guys
  • Adjustable end voltage for lead-acid battery charging (1,90–2,45 V; allows charging of all types of lead-acid batteries)

Basic features and parameters overview:

  • Power supply 10–30 V DC (XT60 port); for full use of the charger's max power output, the supply voltage should be at least 24 V
  • For charging 1–16 NiCd/NiMH cells, 1–6 Li-ion/LiPo/LiFe/LiHV/ULiHV cells or 2–20 V lead-acid batteries
  • Adjustable charging current (0,2–10,0 A) in each channelů (up to 250 W)
  • Max power output for charging 1x400 W (charging current 0,2–16,0 A) in a parallel charging mode
  • Charging termination via delta-peak automation for NiCd and NiMH batteries
  • Lithium and lead-acid batteries are charged via „constant current/constant voltage“ (CCCV) method
  • Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
  • Adjustable end voltage for lithium and lead-acid battery charging
  • Charging mode allows charging of lithium batteries with or without balancer
  • C50 doesn't have a discharge mode
  • Channel 1 (CH1) can be utilised as stabilised power supply with adjustable voltage of 5–24 V and current 0,2–5,0 A
  • Simple firmware update via USB-C port

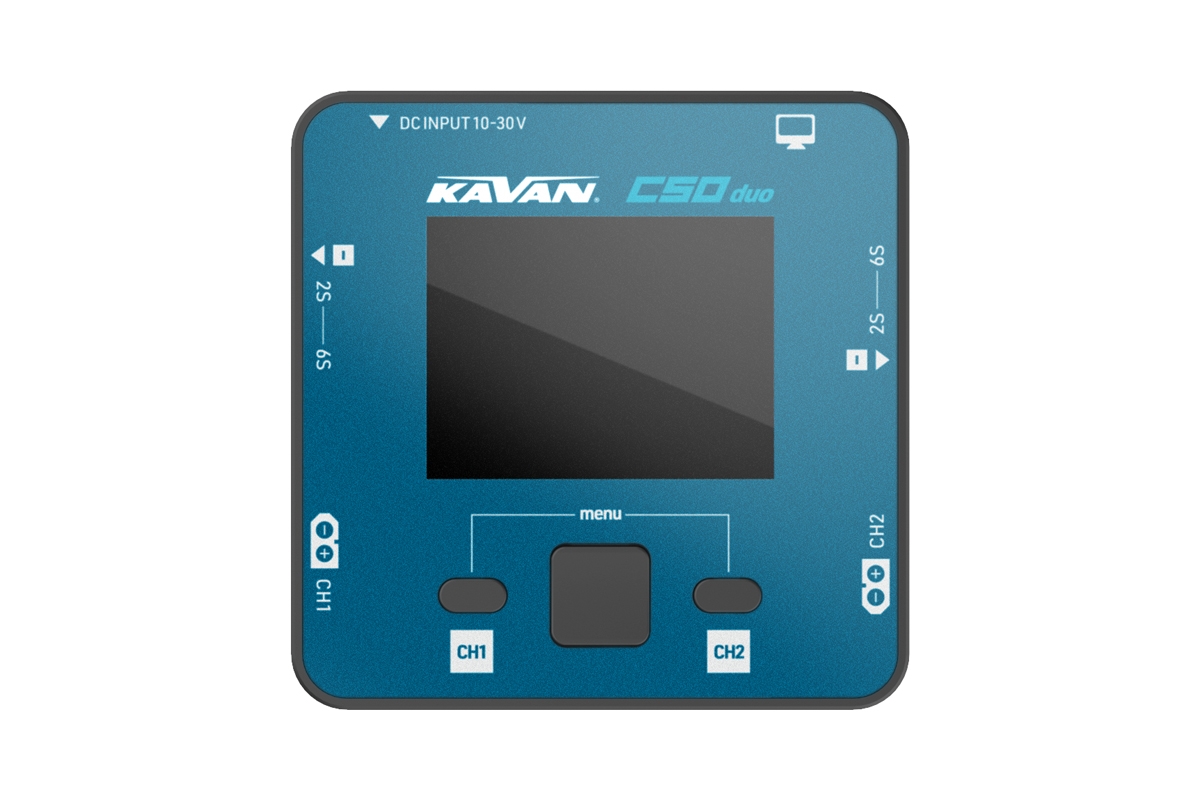

  • Back-lit LCD with clear and simple menu and parameter monitoring during charging
  • Programming buttons for simple setting and operation of the charger
  • Safety is ensured by a number of warnings - incorrect input voltage, wrong connection, insuitable battery or its state etc.
  • Fan for forced cooling
  • Compact plastic case, very small dimensions

The charger is equipped with XT60 sockets in both channels and universal JST-XH sockets for service connectors, allowing direct connection of power cables and JST-XH service connectors of 2–6S packs. If you are using packs with XT60 and JST-XH connectors, you don't need any charging cables or adapters. To connect service cables of a different system you can use standard adapters SkyRC or RC System.

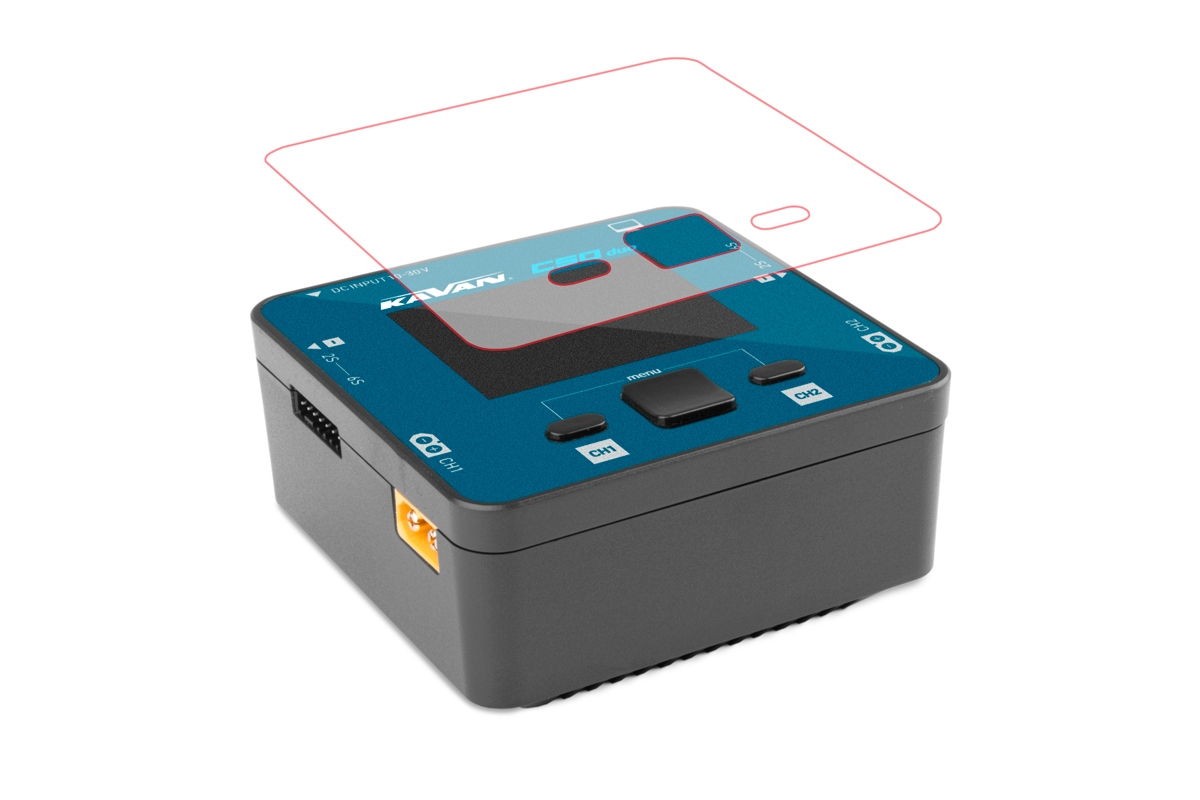

The set contains: C50 Duo charger, screen protector, user manual.

Input voltage (autobaterie - DC) [V]10 - 30
Charging current [A]0.2 - 10
Charging power [W]250
Channels2
NiCd [čl.]1 - 16
NiMH [čl.]1 - 16
Li-Po [čl.]1 - 6
Li-Ion [čl.]1 - 6
Li-Fe [čl.]1 - 6
Li-HV [čl.]1 - 6
Pb [čl.]1 - 10
BalancerYes
Balancer current [mA]500
Length [mm]90.5
Width [mm]90.5
Height [mm]47
Weight [g]250
