Code: KAV33.7158
Brand: KAVAN

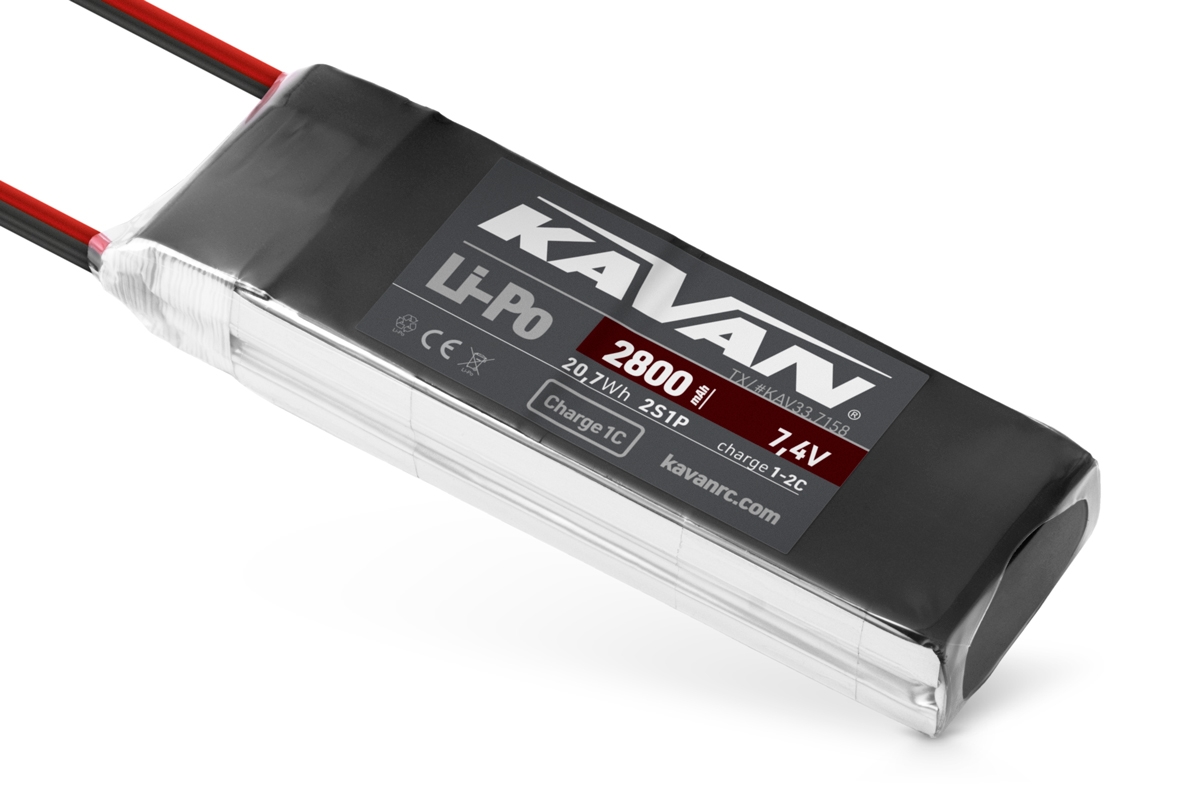

KAVAN Li-Po 2800mAh/7,4V TX

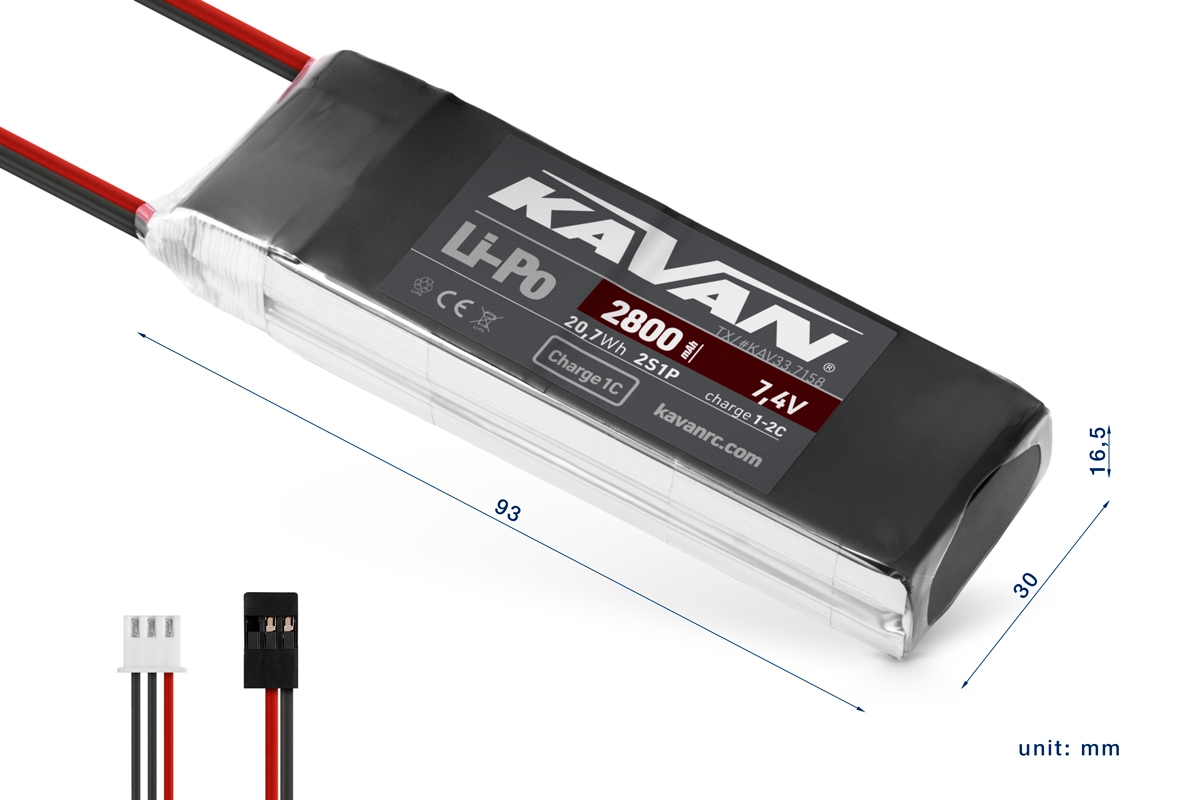

KAVAN LiPo transmitter battery pack with 1C charge and 5C discharge rate. Two-cell pack 2s1p 7.4 V 2800 mAh, dimensions: 93x30x16,5mm, weight 88g, JST-XH balance connector, FUTABA servo plug.
On Stock
19,90 €
Description
Spare parts

The specific conditions of the transmitter (and also receiver) operation call for a dedicated type of LiPo batteries – there is no need for high discharge rate but low self-discharge and tolerance to irregular charging cycles and long term storage in fully charged state are essential. We are happy to introduce a special line of 5/10C KAVAN LiPo batteries optimized for transmitter use.

Do not use a charge rate higher than 1C, the recommended charge rate is 0.5-1C. We recommend using a balancer during every charge. KAVAN transmitter LiPo batteries do not require any initial forming; however, the initial three charging cycles should be performed at a rate not higher than 0.5C. There is no need to discharge the LiPo batteries before the charging - you can charge partly discharged packs.

The batteries are supplied as "Tx Packs“ tailored to the SANWA MT4 / M11X / M12 / M12S / M12RS and FUTABA T6J / T8FG / T12FG and similar transmitters. The packs feature output (charging) cables with Futaba servo connectors and balance cables with JST-XH connectors that could be connected directly to the balance sockets of the most of KAVAN, Raytronic, SkyRC, GT Power etc. chargers.

The package contents: KAVAN 5/10C battery pack, instruction manual.


Capacity [mAh]2800
Voltage [V]7.4
Charging current [A]1.4 - 2.8
Max. charging current [A]2.8
Discharging current [A]14
Max. discharging current [A]28
Energy [Wh]20.7
Length [mm]93
Width [mm]30
Height [mm]16.5
Weight [g]88
