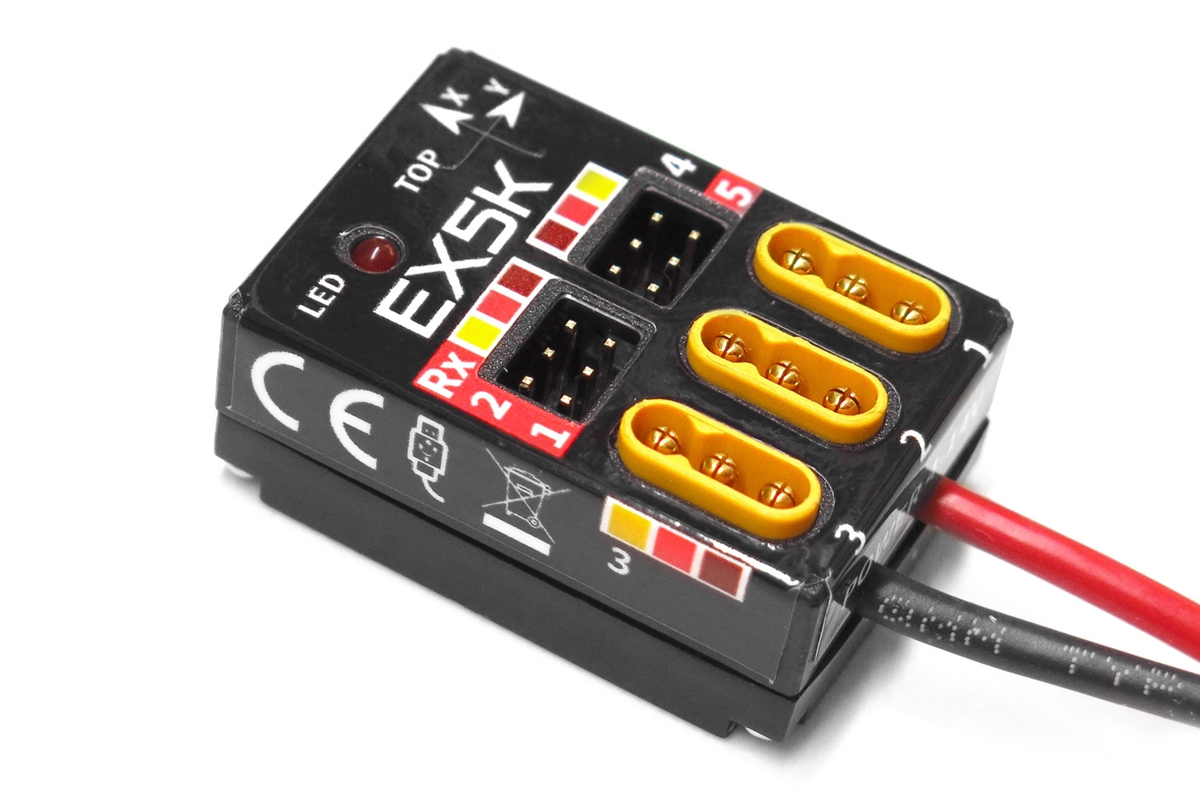

MAV Sense EX5K

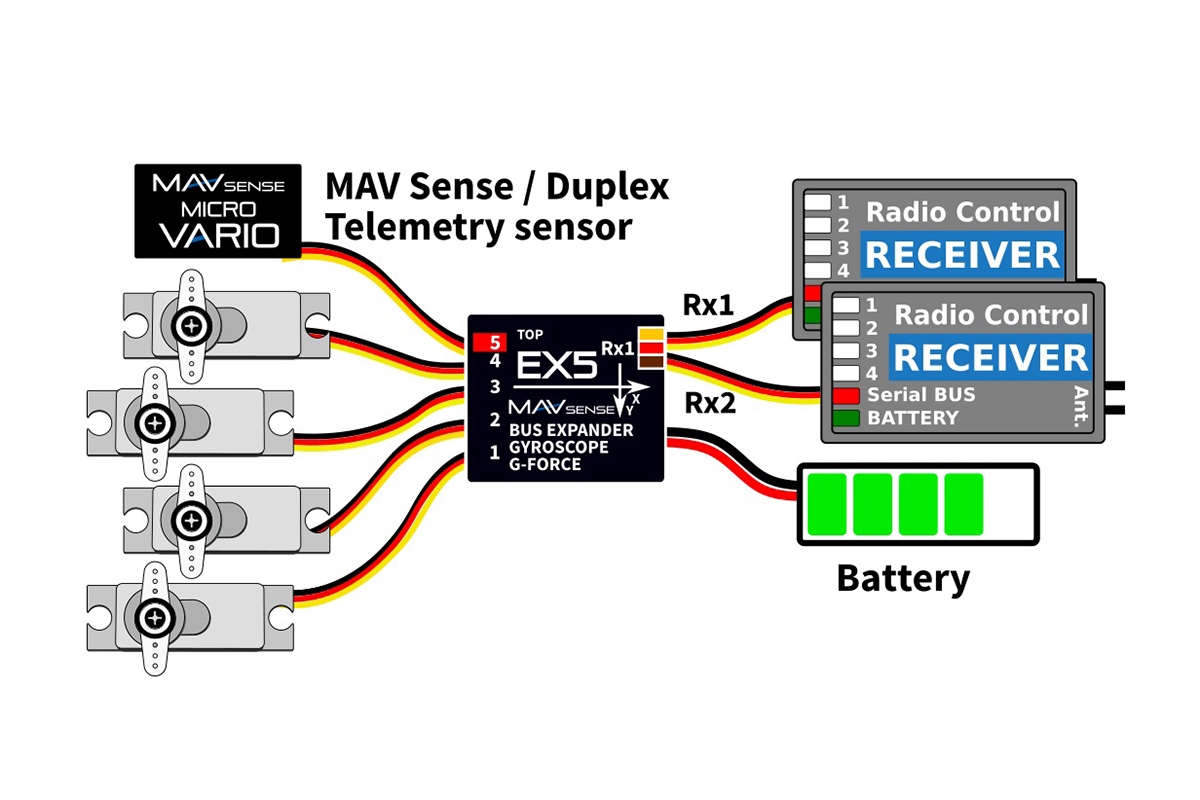

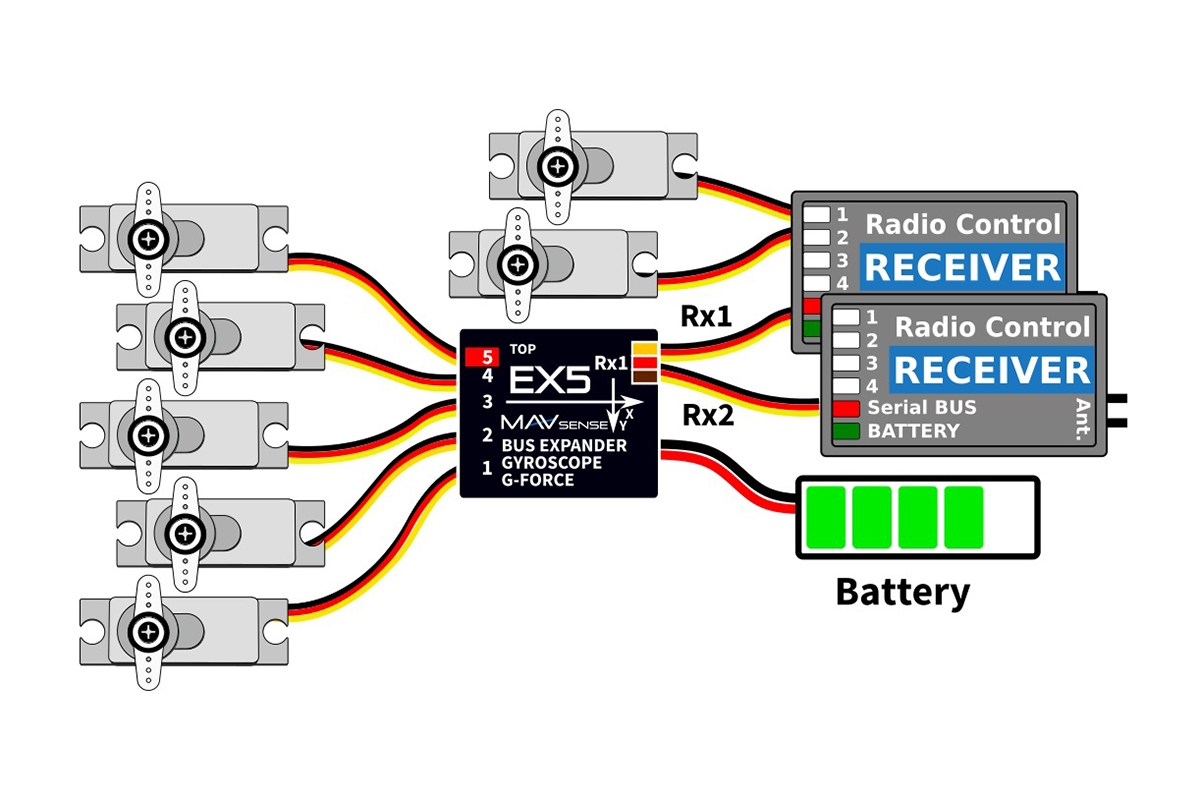

The Servo Expander EX5K is an intelligent bus manager compatible with several radio control systems. The device converts serial bus signal from up to two receivers to either standard PWM servo outputs, or configurable bus outputs. It offers up to five configurable and high-power servo ports with optional period and fail-safe setting.

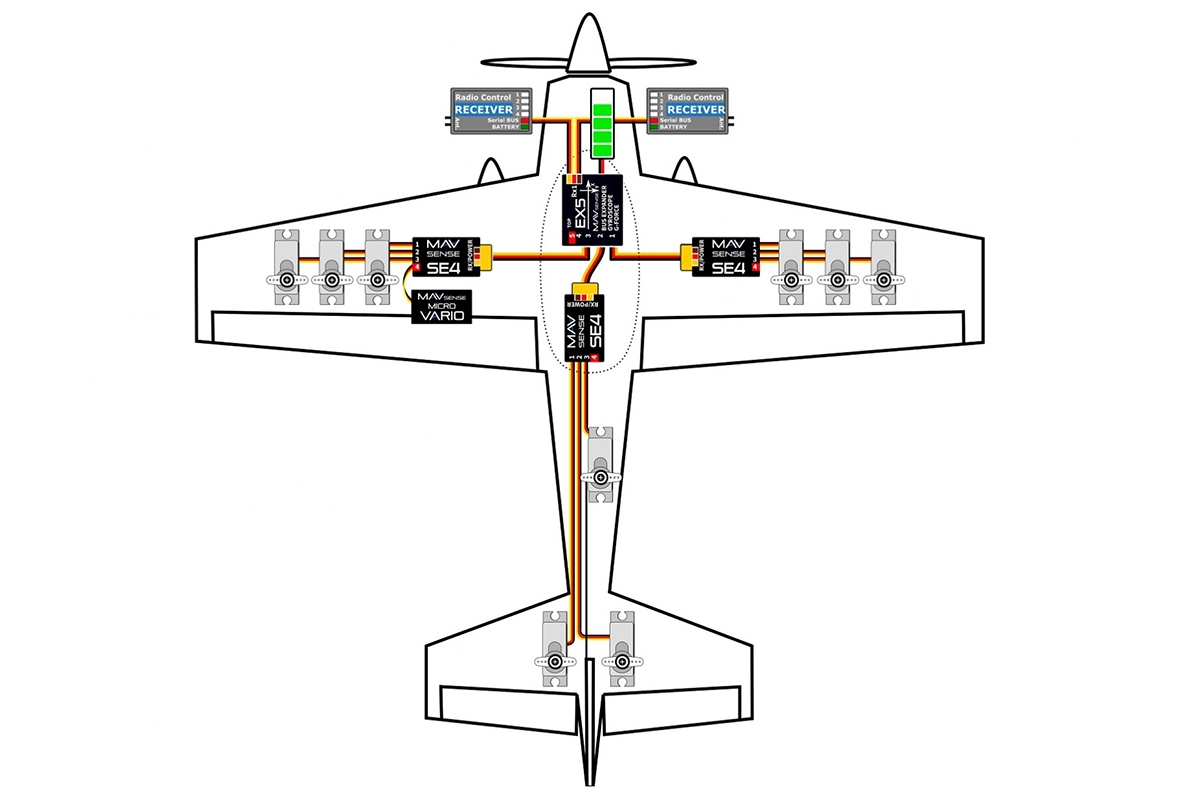

The EX5K offers flight stabilization using the integrated MEMS gyroscope/accelerometer. Up to three configurable flight modes can be used, each with different stabilization gains and settings. In connection with other devices from our production, such as SE4 or SE6, you can create a complex installation with just a few signal/power cables.
Supported protocols:
| Receiver brand | Futaba | Graupner | JETI | Multiplex | PowerBox |
| Supported input serial protocol | S.Bus | SUMD | EX Bus | SRXL 12ch, SRXL 16ch | P2Bus |
| Output serial protocol | S.Bus | SRXL 16ch | EX Bus | SRXL 16ch | SRXL 16ch |
| Telemetry | No | HoTT telemetry | Yes | No | Yes |
| Configuration | JETIBOX | SMART BOX, transmitter | JETIBOX, transmitter | JETIBOX | JETIBOX |
| Flight stabilization | Yes | Yes | Yes | Yes | Yes |
| No. Stabilized channels | Up to 16 | Up to 16 | Up to 16 | Up to 16 | Up to 16 |
Features
- Small dimensions and high current throughput via the integrated MR30 power connectors.
- 5-channel servo/bus expander.
- Flight stabilization offering 3 configurable flight modes.
- Gyro-stabilized servo outputs, EX Bus, SRXL16ch. or S.Bus.
- Tunable stabilization gains during flight.
- Automatic detection of stabilization channels – even with mixes.
- Automatic detection of device alignment in the model.
- Telemetry (RC system dependent): temperature, voltage, attitude (roll/pitch/yaw), G-force.
- Automatic detection of serial data/telemetry after startup.
- Configuration through the transmitter or external terminal (JETIBOX/SMART-BOX).
- Firmware updates via USB interface.
The set contents: EX5K servo expander, instruction manual.

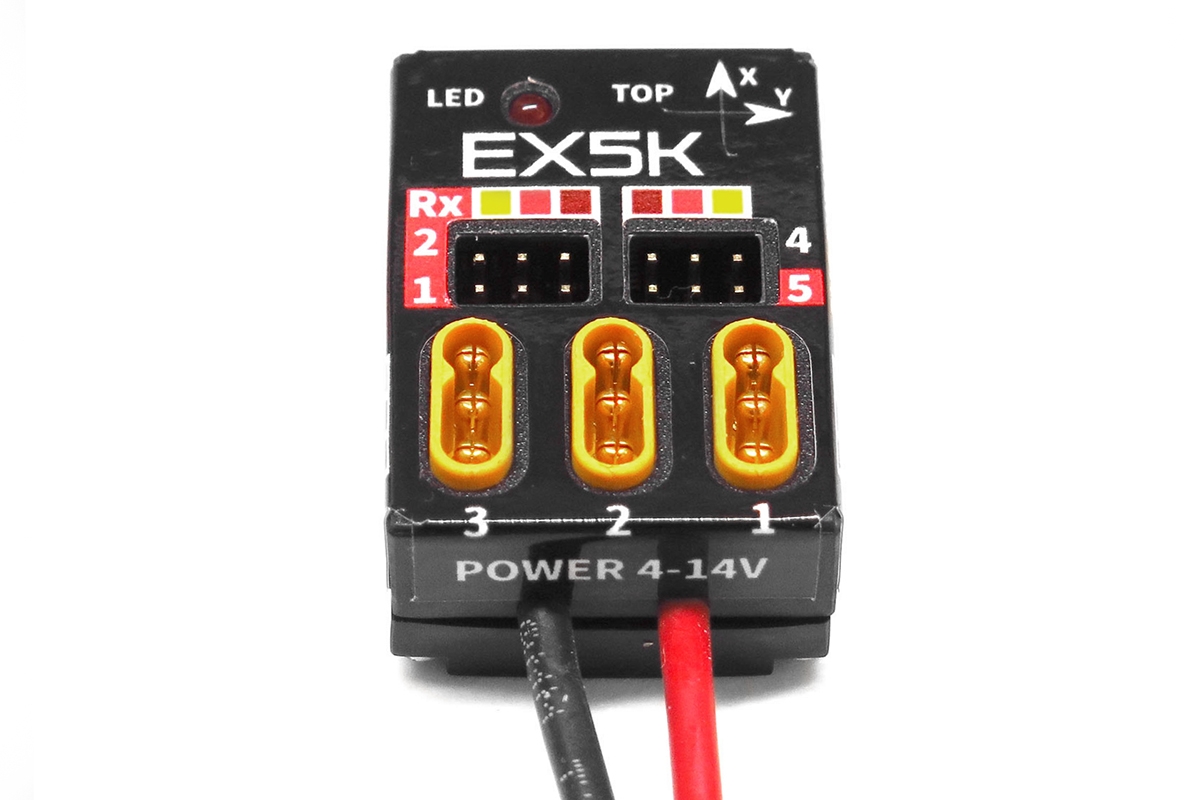

| Power supply [V] | 4 - 14 |
| Current load capacity [mA] | 15 |
| Length [mm] | 38 |
| Width [mm] | 26 |
| Height [mm] | 12 |
| Weight [g] | 14 |
