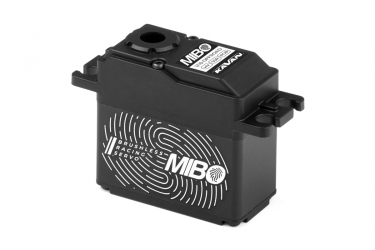

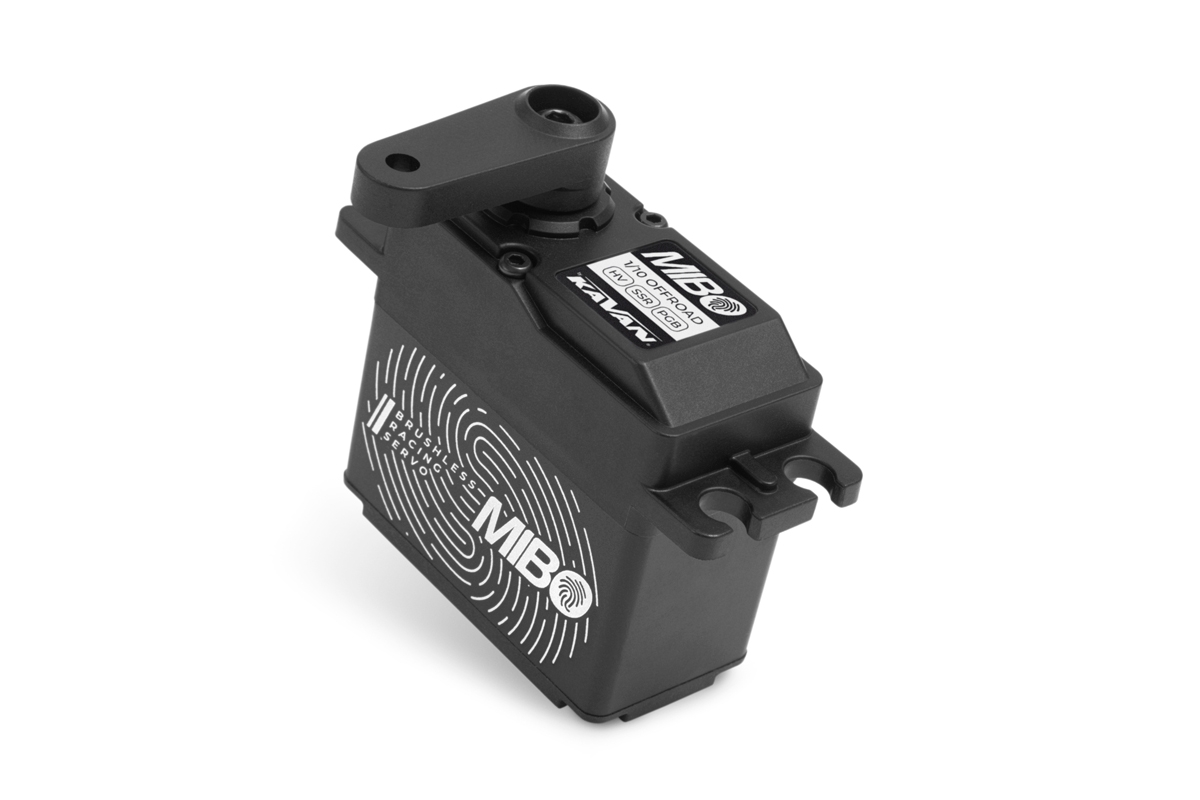

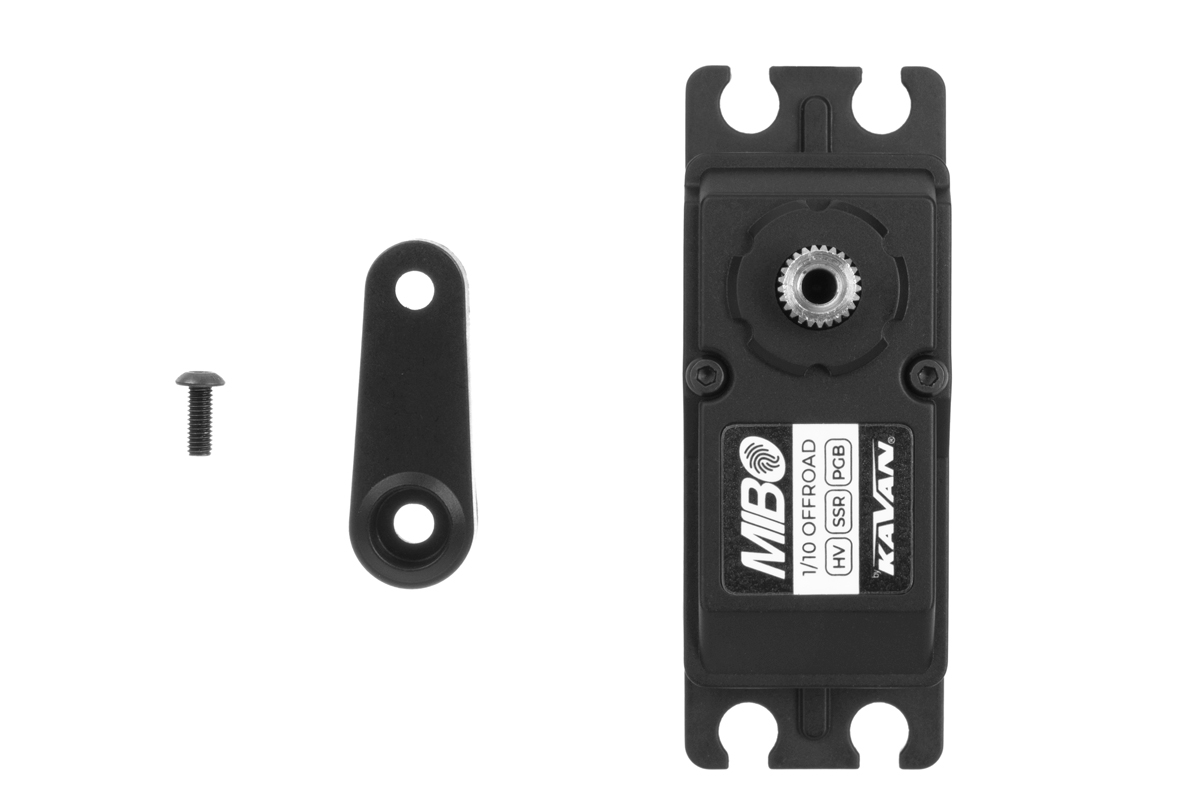

MIBO 1/10 Offroad (0.055s/20kg/8.4V) Brushless Servo
Very high torque/ultra high speed programmable digital standard brushless servo with steel gear and double BB-ed output shaft. Works great in 1:10 off-road RC cars. An aluminium middle case heatsink for perfect cooling under high load.
MB-2322 is not programmable.
Wide input voltage range 4.8–7.4 V (nominal); operating voltage range 4.8–8.4 V.
25T/5.92mm output shaft.
Please meet - MIBO®
MIBO® is a brand born by the cooperation of KAVAN and Mibosport. It aims to provide top-quality equipment and electronics to all RC drivers - beginners, amateur racers and professionals. Under one roof. The proven quality and tradition of the KAVAN brand are spiced by the innovative knowledge and experience of the seasoned masters in the field from Mibosport. And it has a lot to offer.
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | No |
| Thrust at 4.8V [kg/cm] | 10 |
| Thrust at 6.0V [kg/cm] | 14 |
| Thrust at 7.4V [kg/cm] | 17 |
| Thrust at 8.4V [kg/cm] | 20 |
| Speed at 4.8V [s/60st.] | 0.085 |
| Speed at 6.0V [s/60st.] | 0.075 |
| Speed at 7.4V [s/60st.] | 0.065 |
| Speed at 8.4V [s/60st.] | 0.055 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 4.8 - 8.4 |

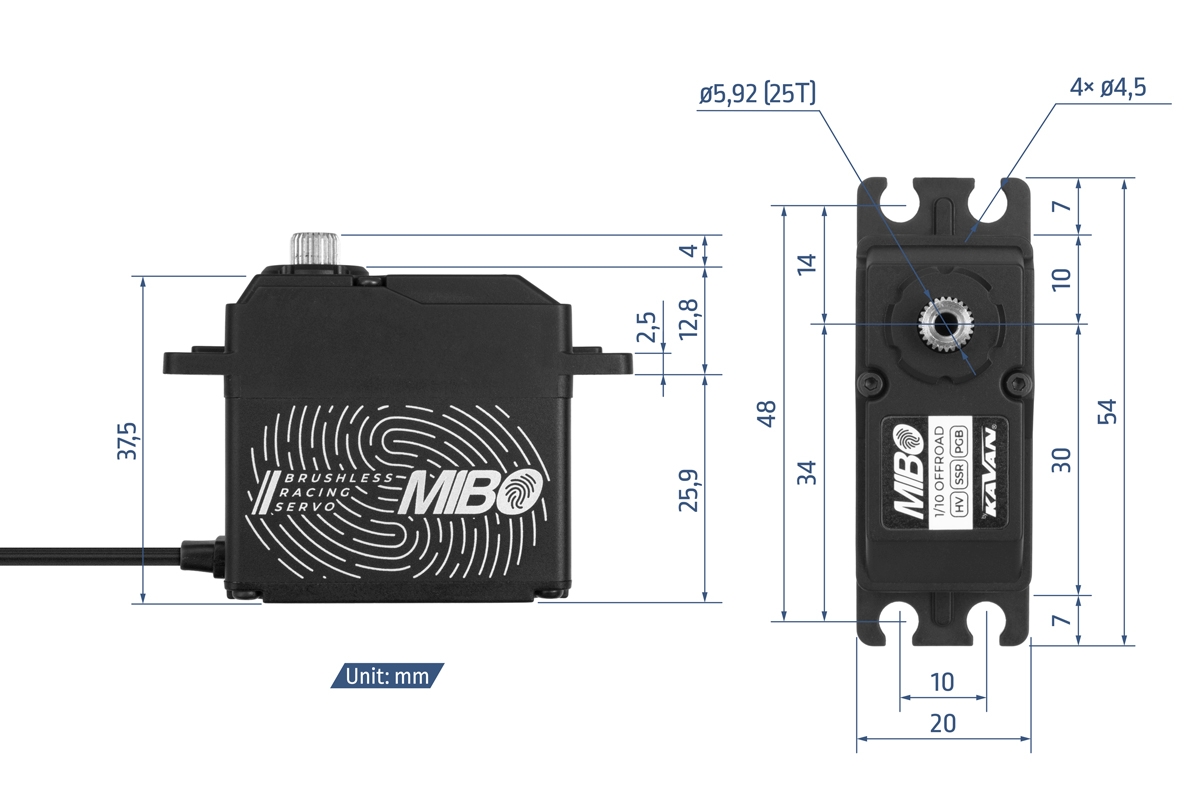

| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 37.5 |
| Weight [g] | 69.5 |
| Intended for | Off-road cars |
| Cable length [mm] | 100 |

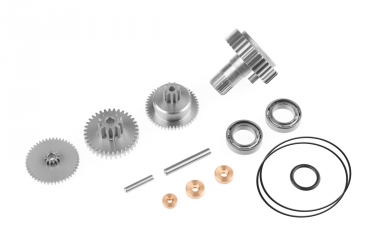

Spare parts (2)
