Code: OS12662

Barcode: 4531028024045

Brand: OS MAX

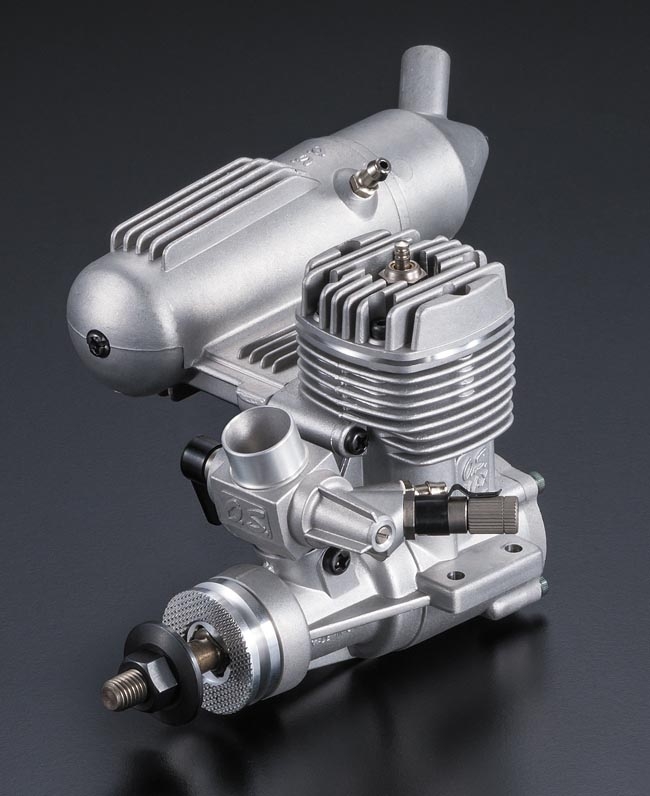

OS MAX-25FX II (21L) W/892 SILENCER

On Stock

171,60 €

Recommended props.:
Sport: 9x5, 9x6, 9,5x5, 10x5
Aerobatics: 9x6, 9,5x5

Displacement [ccm]	4.07
Cylinder count	1
Bore [mm]	18
Stroke length [mm]	16
Operating RPM [ot./min]	2500 - 19000
Motor power (při 18000 ot./min) [W]	620
Power (při 18000 ot./min) [HP]	0.84
Weight (motor) [g]	260
Weight (tlumič) [g]	52
Recommended tank volume [ml]	200 - 220
Recommended spark plug	O.S. MAX No. No.8
Propeller nut thread	UNF 1/4-28

Spare parts (37)

Carburetor Complete (Type 21L)

Carburetor Body

Carburetor Rotor

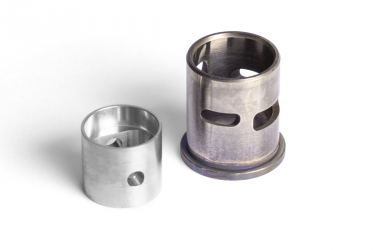

Cylinder Piston Assembly

Carburetor Rubber Gasket

Retaining Screw (N.+M3x27 2pcs.)

Crankshaft Ball Bearing (R)

Fuel Inlet (Nipple No.1)

Pressure Nipple (No.7)

"O" Ring (2pcs.)

Crankshaft Ball Bearing (F)

Propeller Washer

Carburetor Retaining Screw (N.+M3.5x5 2pcs.)

Propeller nut (UNF1/4-28) 21-61

"O" Ring (2pcs.)

Needle valve holder assy 20C.60U.70D.40J

Mixture Control Valve Assembly

Needle Assembly

Roter Guide Screw

"O" Ring (2pcs.)

Glowplug OS MAX No.8

Silencer Assembly Screw (4pcs.)

892 Silencer Assembly

Download
