Code: 3EL10533V2L
Brand: AXI

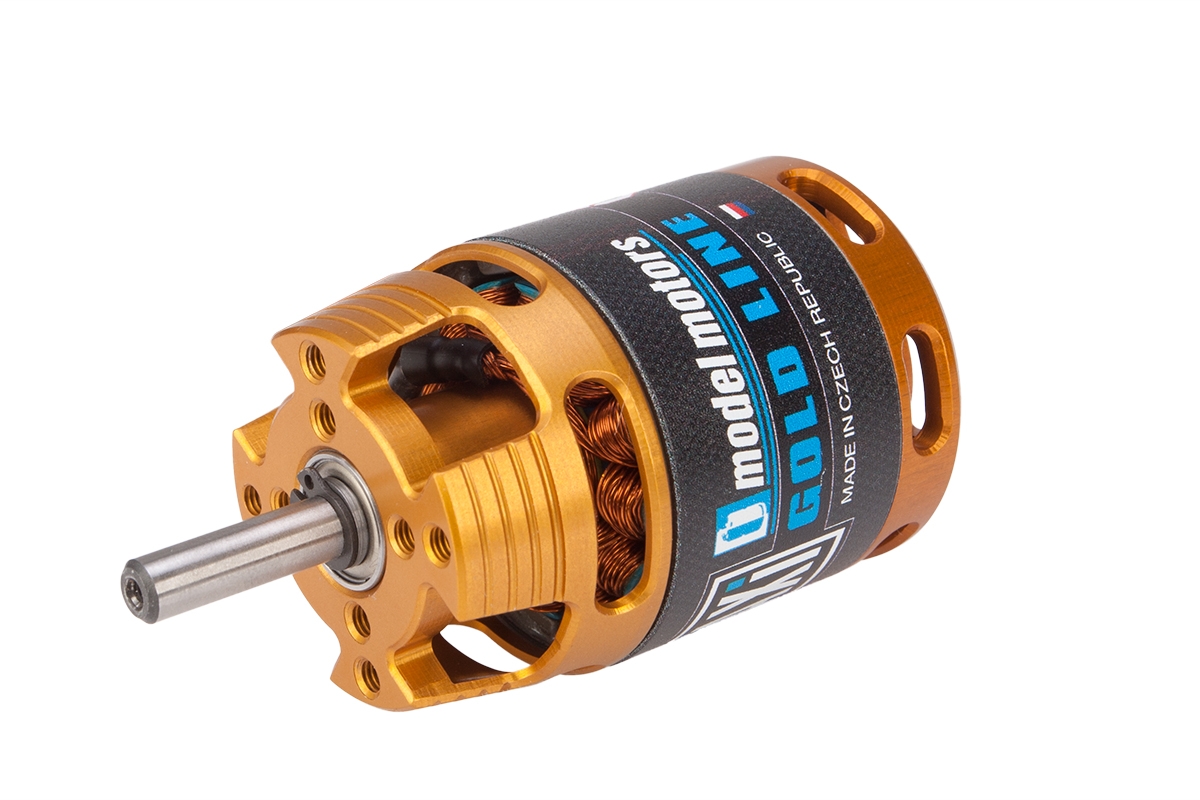

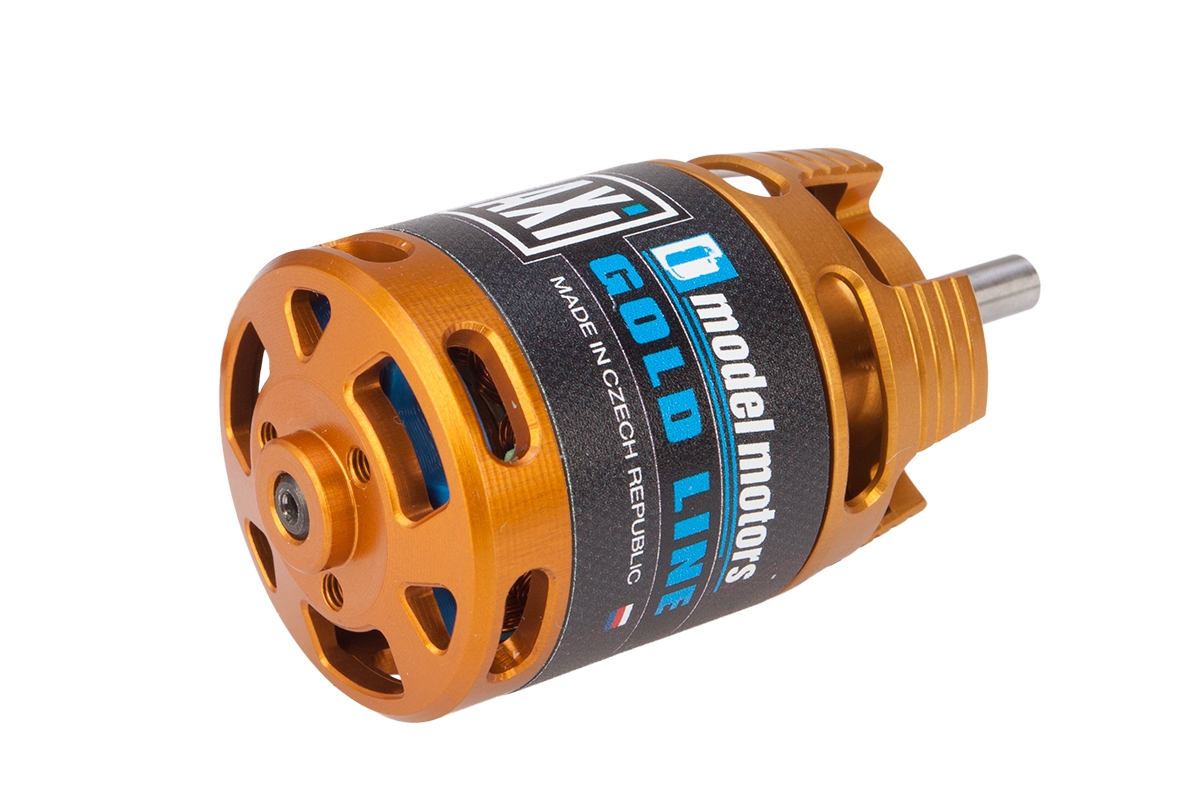

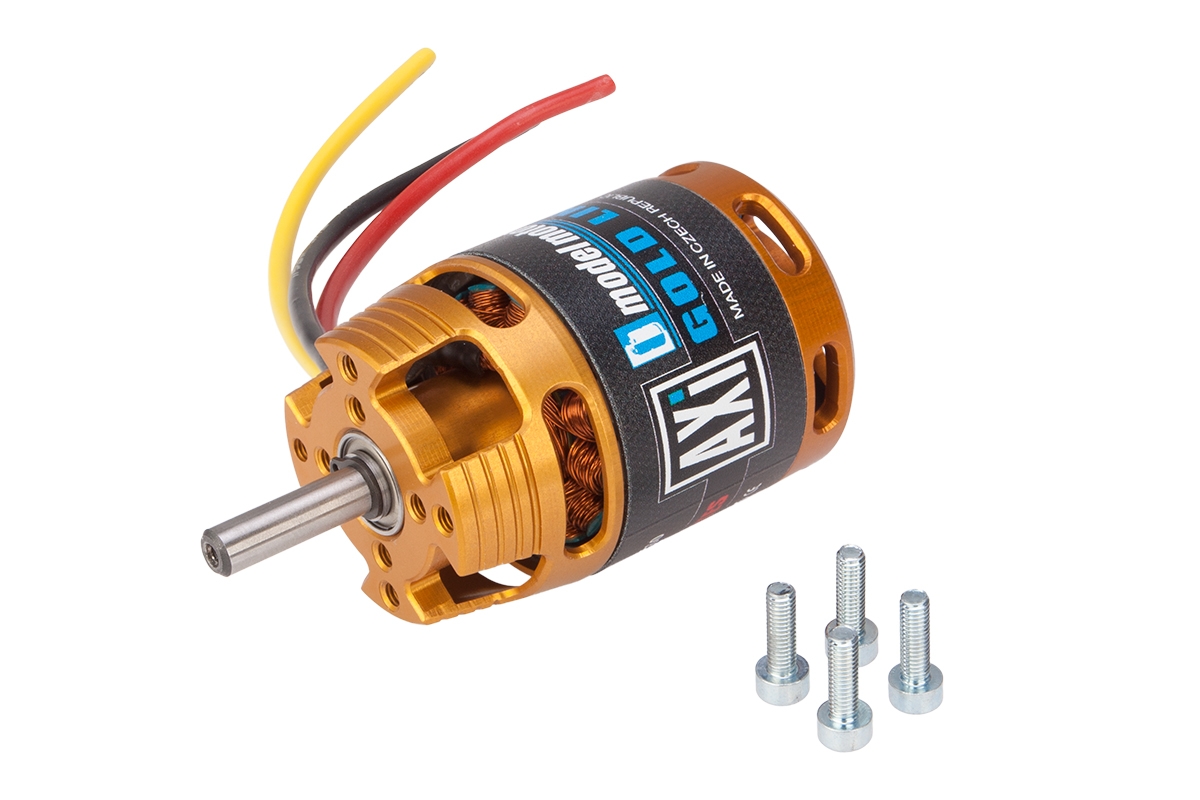

AXI 2808/16 V2 LONG Brushless
On Stock

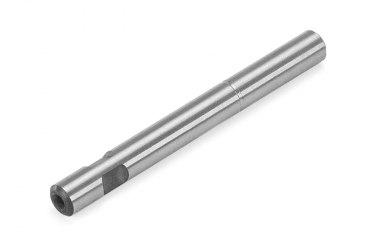

82,00 €High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.
Delivered without prop. holder and Radial mount set!
Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1820 ; Nr. of turns: 16 ; Internal resistance [mOhm]: 75 ; No load current [A]: 2 ; max. effenciency [%]: 82 ; Max. efficiency current (η>75%) [A]: 10 - 15 ; Max. peak current (60 s) [A]: 26 ; Max. power [W]: 170 ; Diameter [mm]: 35 ; Lenght [mm]: 39 ; Shaft diameter [mm]: 5 ; Weight [g]: 85 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 30 - 35 ; Acrobat up to Weight (hotliner) [g]: 800
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 1820 |
| Turn count | 16 |
| Internal resistance [mOhm] | 75 |
| Open-circuit current [A] | 2 |
| Max. efficiency [%] | 82 |
| Max. efficiency current (η>75%) [A] | 10 - 15 |
| Max. peak current (60 s) [A] | 26 |
| Max. power [W] | 170 |

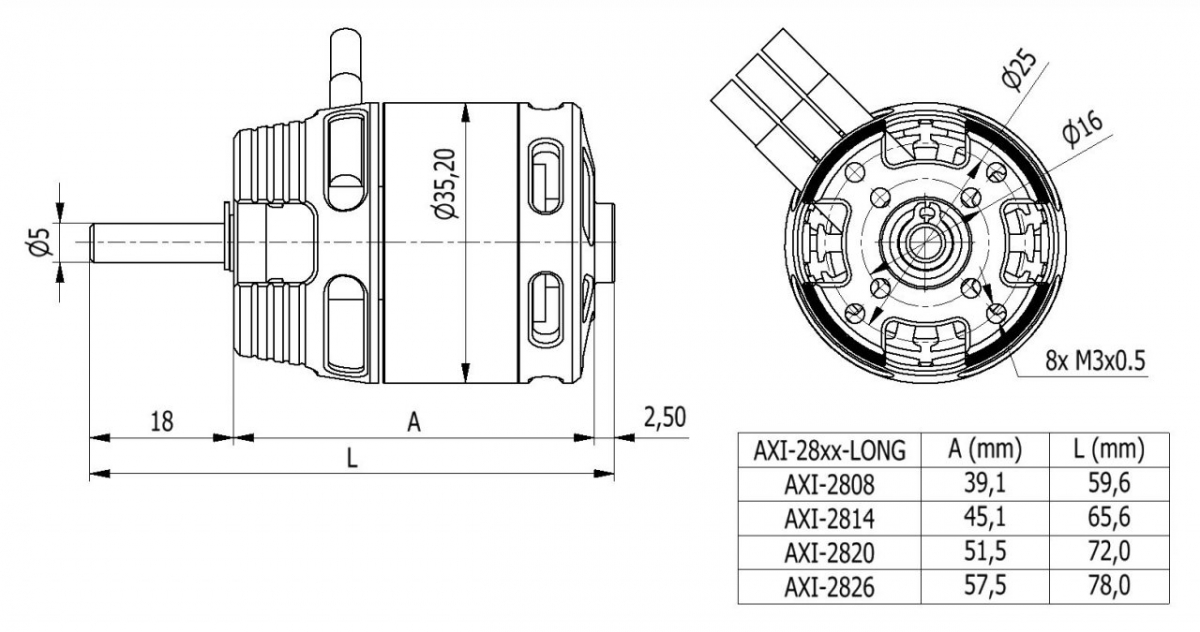

| Diameter [mm] | 35 |
| Length [mm] | 39 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 85 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 30 - 35 |
| Weight of acrobat (up-to) (hotliner) [g] | 800 |
