Code: 3EL105300V2
Barcode: 8595247302274
Brand: AXI

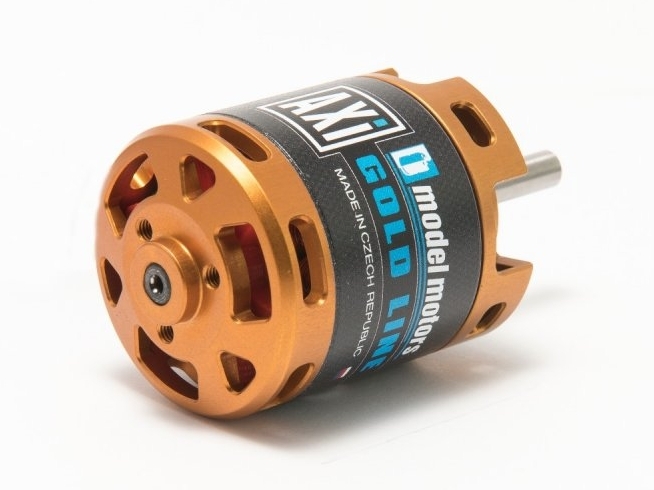

AXI 2820/14 V2 Brushless

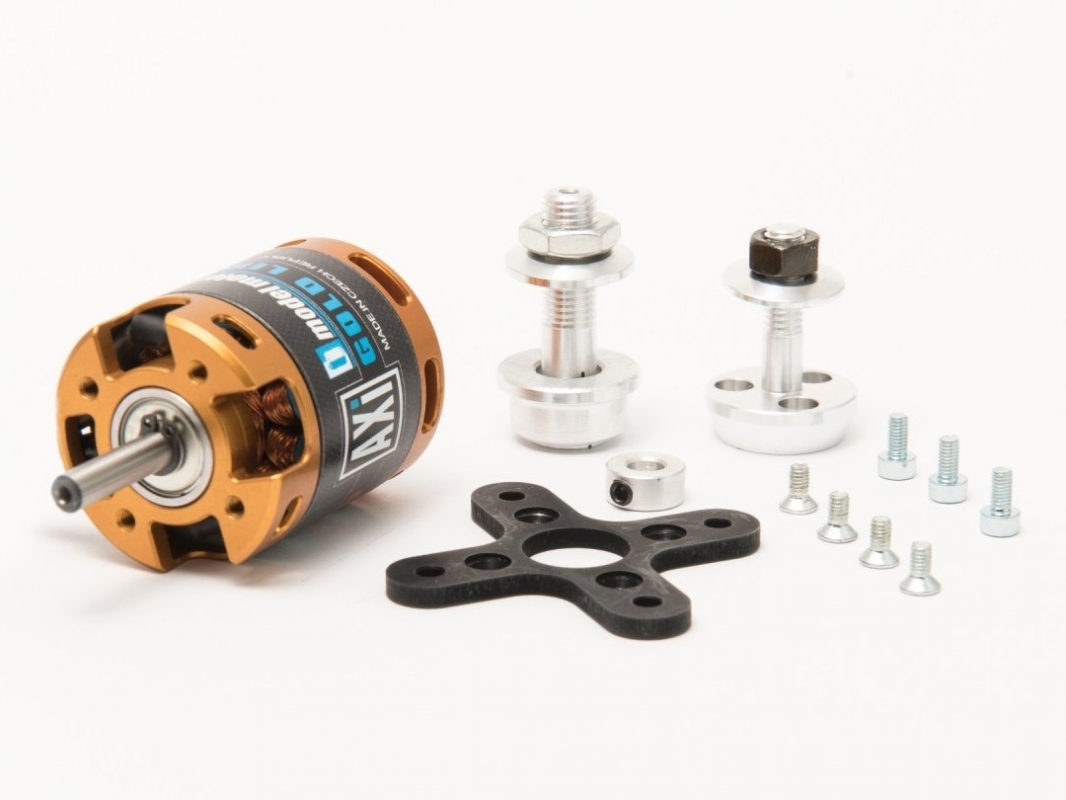

New developed brushless motors with with neodymium magnets and rotating case are manufactured using the latest technology from the finest quality materials. Input voltage 2-4s Lixx, recommended 40A ESC, 5mm shaft, 860RPM/V. Suitable for Sailplanes up to 2400g, Trainer models up to 2000g and 3D Aerobatic up to 1500g weight. Delivered with mounting flange, propeller adaptors (front and back), securing collar and screws.
Supply voltage LiXX cells: 3 - 4 ; RPM/V [RPM/min/V]: 860 ; Nr. of turns: 14 ; Internal resistance [mOhm]: 78 ; No load current [A]: 1.7 ; max. effenciency [%]: 88 ; Max. efficiency current (η>75%) [A]: 15 - 30 ; Max. peak current (60 s) [A]: 37 ; Max. power [W]: 520 ; Diameter [mm]: 35 ; Lenght [mm]: 44 ; Shaft diameter [mm]: 5 ; Weight [g]: 148 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 40 - 50 ; Sailplane up to Weight [g]: 2400 ; Trainer up to Weight [g]: 2200 ; Acrobat up to Weight [g]: 1800 ; 3d up to Weight [g]: 1400
Powering LiXX cells | 3 - 4 |
RPM/V [ot./min/V] | 860 |
Turn count | 14 |
Internal resistance [mOhm] | 78 |
Open-circuit current [A] | 1.7 |
Max. efficiency [%] | 88 |
Max. efficiency current (η>75%) [A] | 15 - 30 |
Max. peak current (60 s) [A] | 37 |
Max. power [W] | 520 |
Diameter [mm] | 35 |
Length [mm] | 44 |
Shaft diameter [mm] | 5 |
Weight [g] | 148 |
Poles count | 14 |
Timing [°] | 15 - 25 |
ESC [A] | 40 - 50 |
Weight of glider (up-to) [g] | 2400 |
Weight of trainer (up-to) [g] | 2200 |
Weight of acrobat (up-to) [g] | 1800 |
Weight of 3D (up-to) [g] | 1400 |
