Code: MKS10014
Barcode: 4710150350288
Brand: MKS

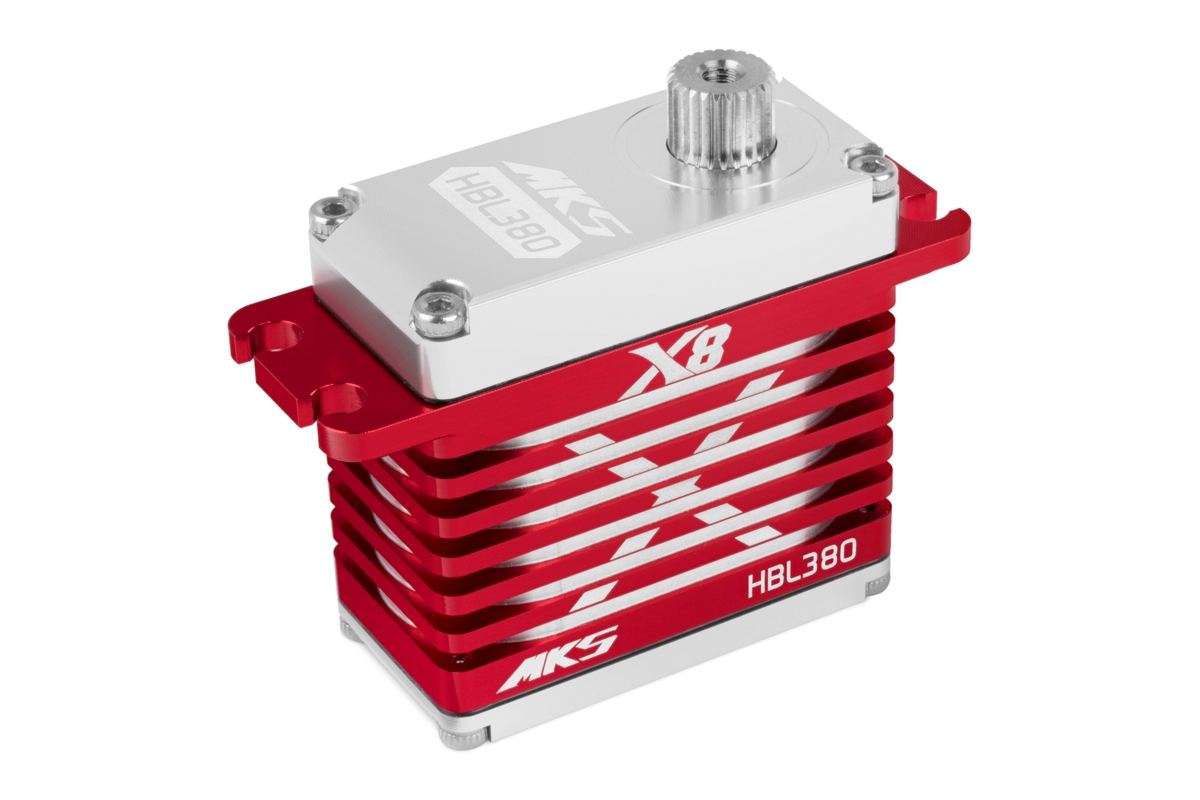

HBL380 (0.082s/60°, 41.0kg.cm)

Very high torque/very high speed 73g HV digital standard brushless servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for large model aeroplanes, 700-800 class helicopter cyclic, 1/8 and 1/5 RC cars. Torque 31.0kg.cm, speed 0.114s/60° at 6.0V, torque 39.0kg.cm, speed 0.092s/60° at 7.4V, torque 41.0kg.cm, speed 0.082s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40x20x38.5mm, weight 73g. Programmable with DSP-1 programmer.
Not on stock
222,99 €
Description

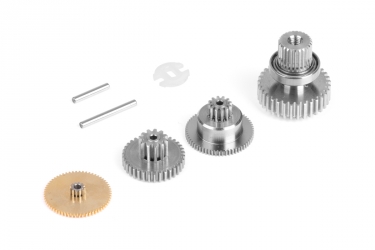

Spare parts
Download

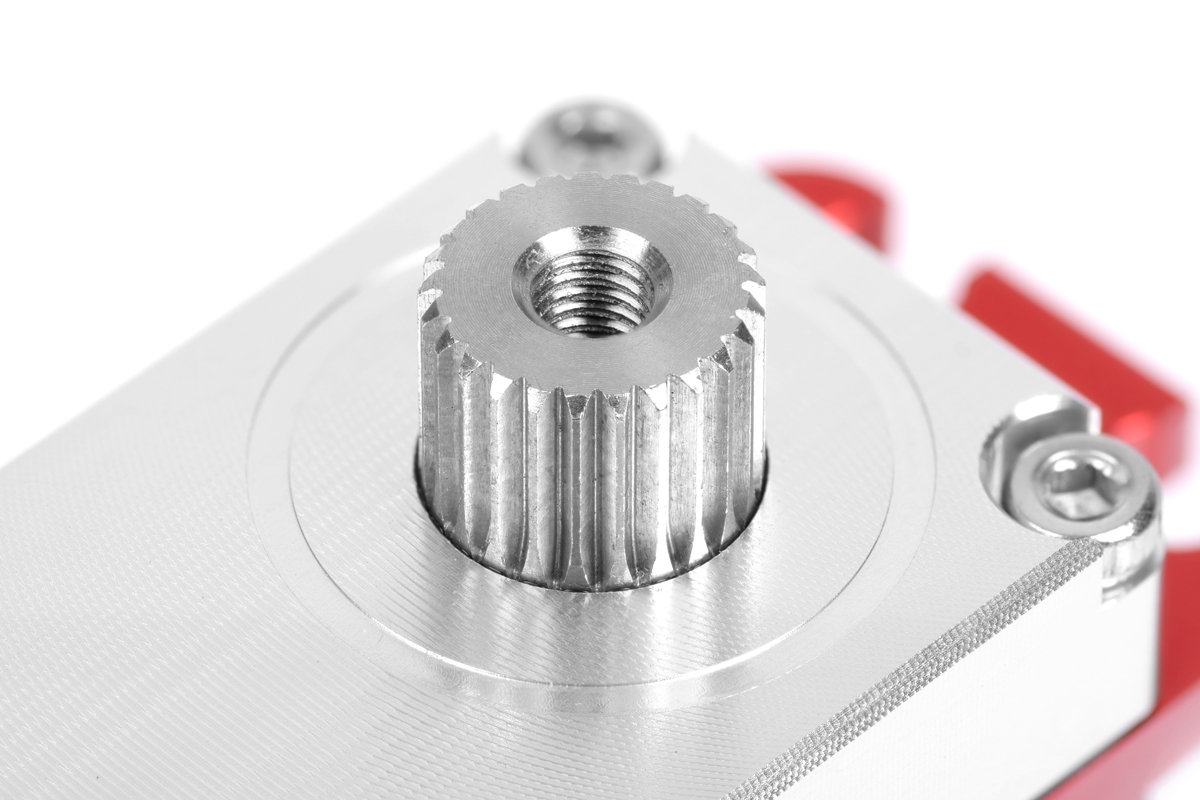

Very high torque/very high speed programmable digital standard brushless servo with titanium gears and twin ballraced output shaft; ideal for large model aeroplanes, 700-800 class helicopter cyclic, 1/8 and 1/5 RC cars. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.

Input voltage range 6.0-7.4 V (nominal), operational 6.0-8.4 V.

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

Servo dimensionsStandard
Servo typeDigital
ProgrammableYes
Torque at 6.0V [kg∙cm]31
Torque at 7.4V [kg∙cm]39
Torque at 8.2 V [kg∙cm]41
Speed at 6.0V [s/60st.]0.114
Speed at 7.4V [s/60st.]0.092
Speed at 8.2 V [s/60st.]0.082
Control pulse width in neutral [µs]1520
Frame Rate [Hz]333
Deadband [ms]0.0008
Servo gearsMetal
Ball bearings
High-voltageYes
Power supply [V]6 - 8.4

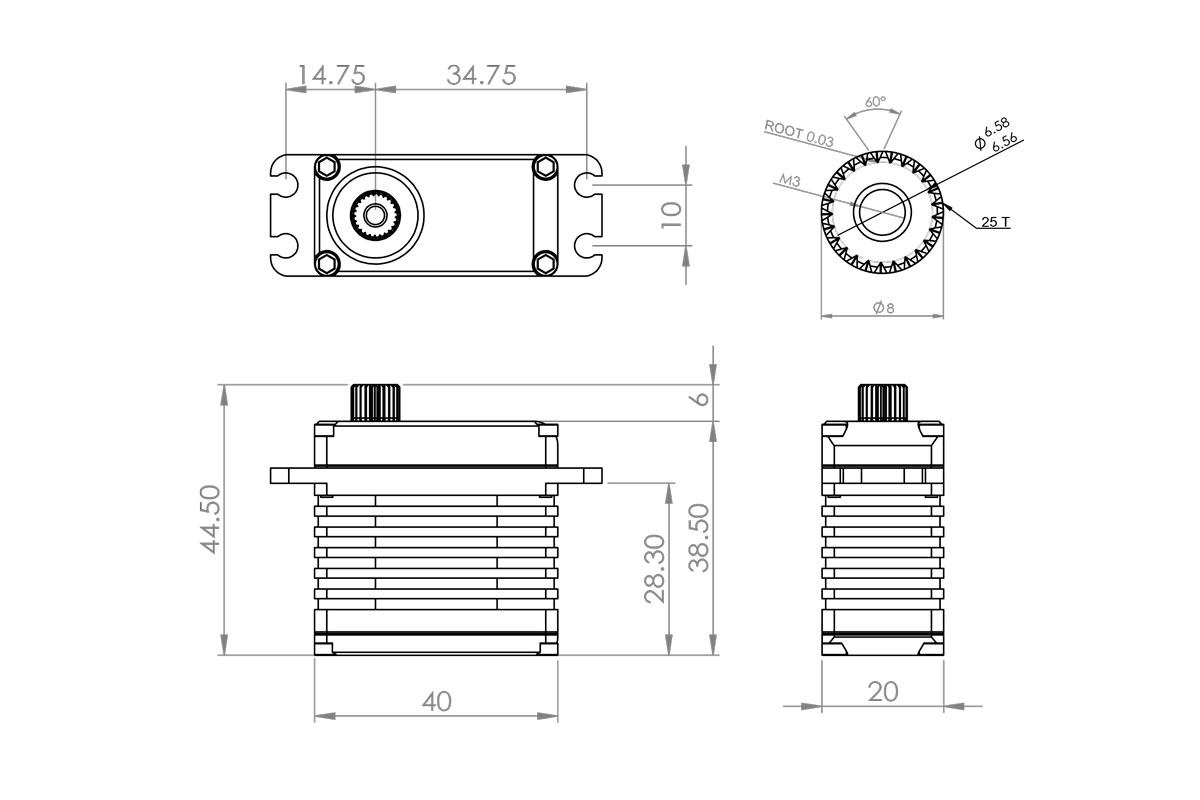

Length [mm]40
Width [mm]20
Height [mm]38.5
Weight [g]73
Intended forAeroplanes,Helicopters,On-road cars,Off-road cars
Servo motor typeBrushless

Download

Instruction Manual17.01.2024
