Code: MKS10010
Barcode: 4710150350189
Brand: MKS
HBL880 (0.032s/60°, 11.2kg.cm)
High torque/ultra high speed 70g HV digital narrowband (760µs) brushless standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for tail rotors of 700-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. Torque 8.2kg.cm, speed 0.044s/60° at 6.0V, torque 10.1kg.cm, speed 0.036s/60° at 7.4V, torque 11.2kg.cm, speed 0.032s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40x20x38.5mm, weight 73.2g. Non-programmable.
Description
Spare parts
Download

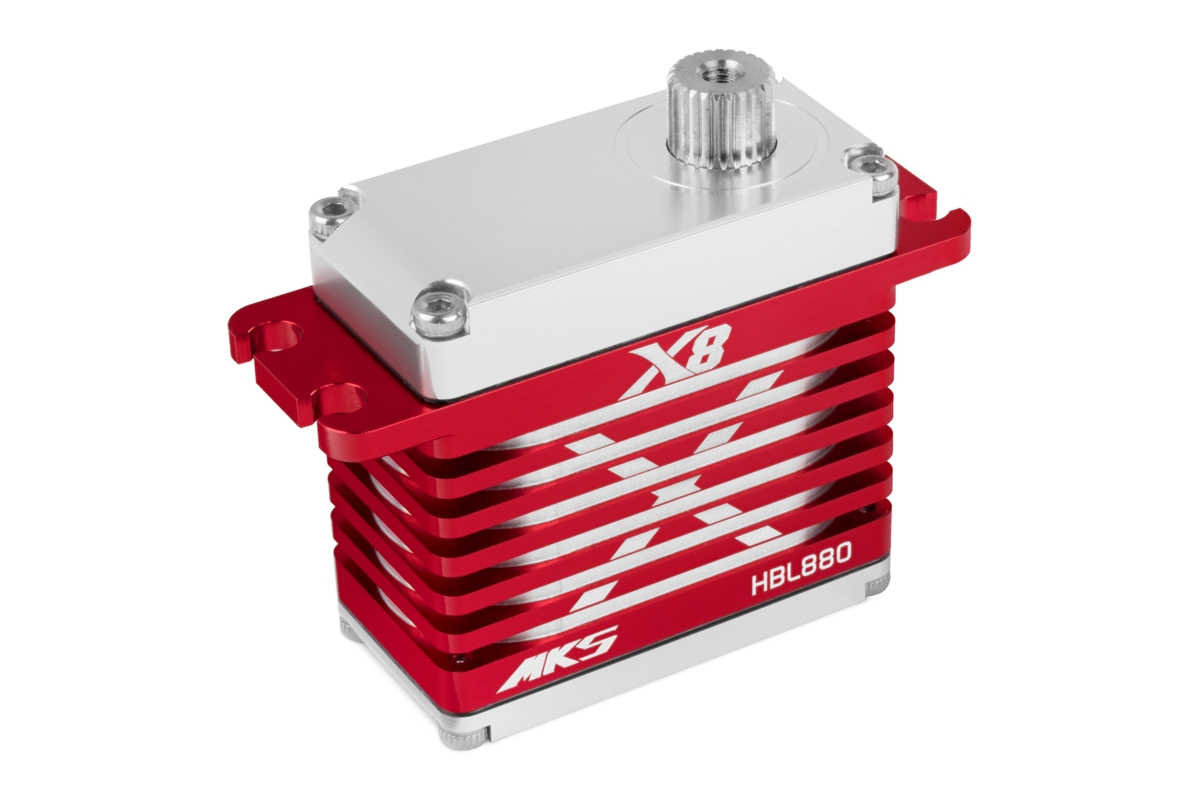

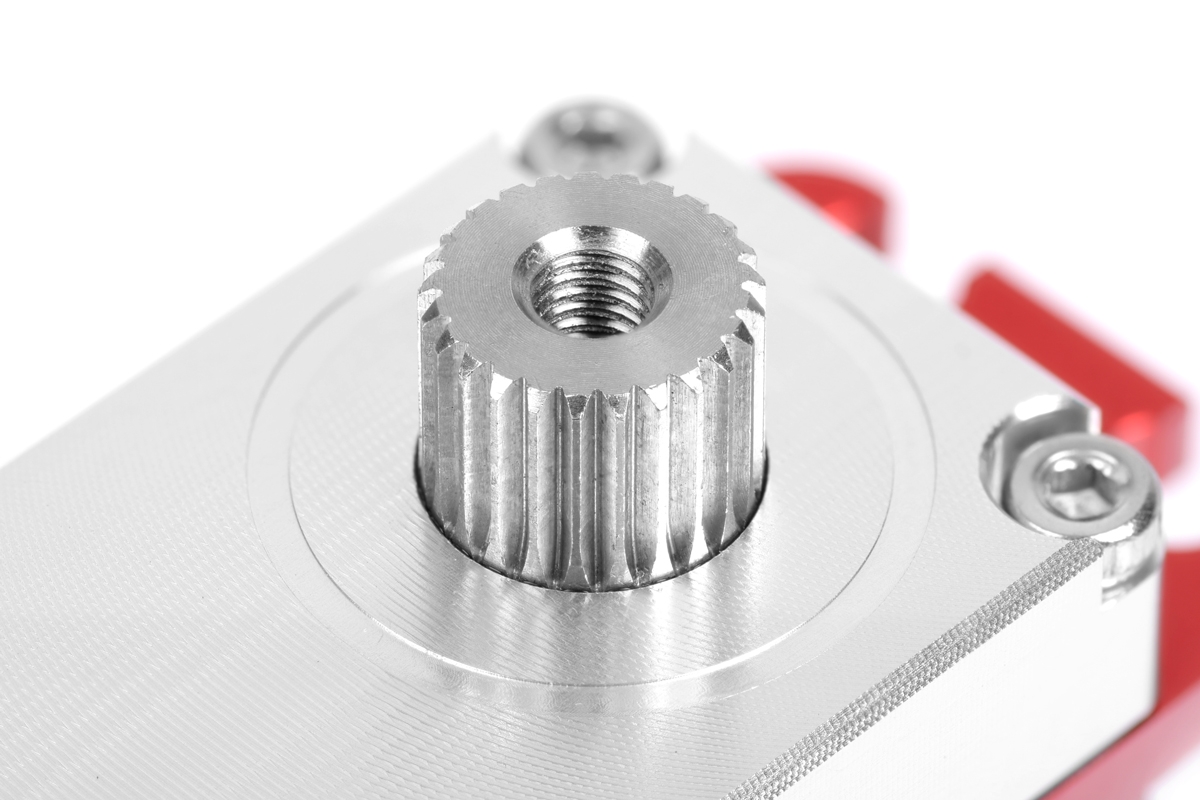

High torque/ultra high speed narrowband (760µs) digital standard brushless servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 700-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads. This servo is not programmable.
Input voltage range 6.0-7.4 V (nominal).
Servo dimensions | Standard |
Servo type | Digital |
Programmable | No |
Torque at 6.0V [kg∙cm] | 8.2 |
Torque at 7.4V [kg∙cm] | 10.1 |
Torque at 8.2 V [kg∙cm] | 11.19 |
Speed at 6.0V [s/60st.] | 0.044 |
Speed at 7.4V [s/60st.] | 0.036 |
Speed at 8.2 V [s/60st.] | 0.032 |
Control pulse width in neutral [µs] | 760 |
Frame Rate [Hz] | 560 |
Deadband [ms] | 0.0004 |
Servo gears | Metal |
Ball bearings | 2× |
High-voltage | Yes |
Power supply [V] | 6 - 8.4 |

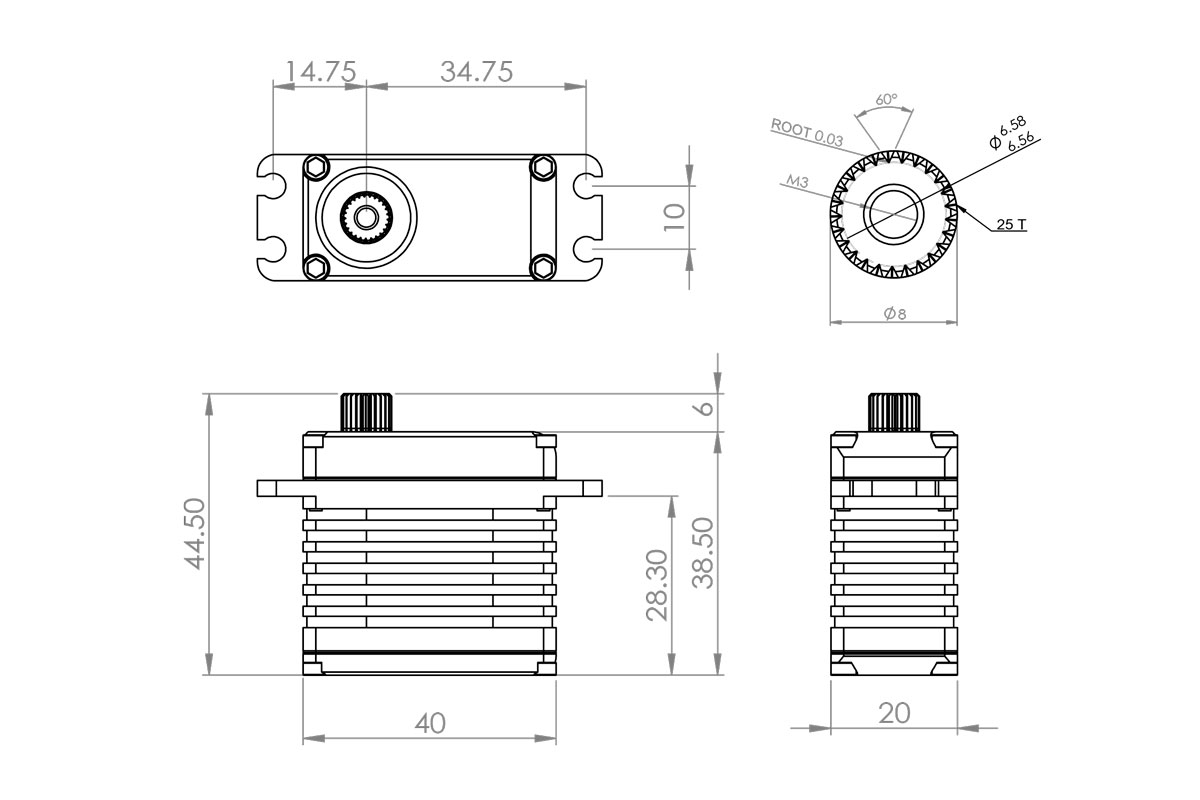

Length [mm] | 40 |
Width [mm] | 20 |
Height [mm] | 38.5 |
Weight [g] | 73.2 |
Intended for | Helicopters |
Servo motor type | Brushless |
